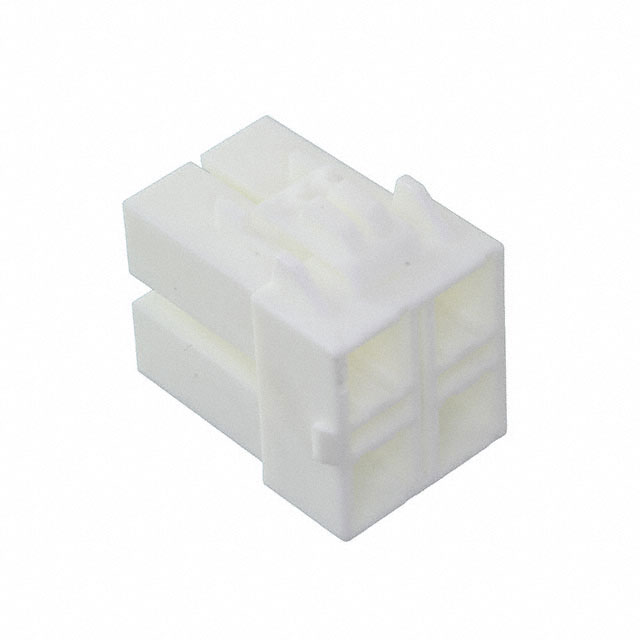

DF22B-4DS-7.92C

Active

Hirose Electric USA, Inc.

CONN SOCKET HSG 4POS 7.92MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN SOCKET HSG 4POS 7.92MM

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Insulation Material	Note	Number of Rows	Color	Features	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Pitch [x]	Pitch [x]	Contact Termination	Mounting Type	Number of Positions
Hirose Electric USA, Inc. DF22B-5S-7.92C	Receptacle	Nylon Polyamide (PA)	Contacts Not Included	1	White	Polarizing Key	Latch Lock	85 °C	-55 °C	Female Socket	7.92 mm	0.312 in	Crimp	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF22B-3S-7.92C	Receptacle	Nylon Polyamide (PA)	Contacts Not Included	1	White	Polarizing Key	Latch Lock	85 °C	-55 °C	Female Socket	7.92 mm	0.312 in	Crimp	Free Hanging (In-Line)
Hirose Electric USA, Inc. DF22B-2S-7.92C	Receptacle	Nylon Polyamide (PA)	Contacts Not Included	1	White	Polarizing Key	Latch Lock	85 °C	-55 °C	Female Socket	7.92 mm	0.312 in	Crimp	Free Hanging (In-Line)	2
Hirose Electric USA, Inc. DF22B-4DS-7.92C	Socket	Nylon Polyamide (PA)	Contacts Not Included	2	White		Latch Lock	85 °C	-55 °C	Female Socket	7.92 mm	0.312 in	Crimp	Free Hanging (In-Line)	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Socket White 0.312" (7.92mm)
