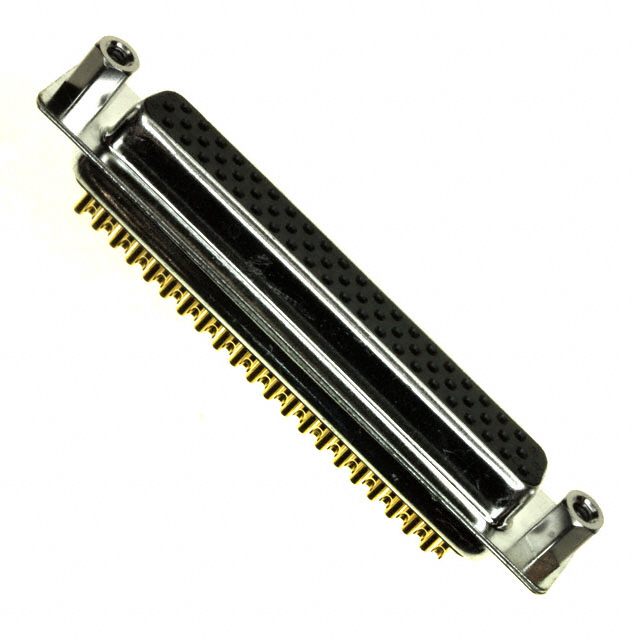

D SUB CONNECTOR, RECEPTACLE, 180 M SERIES, 62 CONTACTS, DC, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
180-M62-203L031
ActiveMH Connectors
D SUB CONNECTOR, RECEPTACLE, 180 M SERIES, 62 CONTACTS, DC, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 180-M62-203L031 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 62 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 24 AWG |
180-M62 Series
| Part | Contact Finish | Termination | Shell Material, Finish | Shell Size, Connector Layout | Color | Contact Finish Thickness | Connector Style | Features | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Type | Dielectric Material | Flange Feature | Mounting Type | Connector Type | Material Flammability Rating | Current Rating (Amps) | Contact Material | Number of Positions | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Gold | Solder | Nickel Plated Steel | 4 | Black | Flash | D-Sub High Density | Shielded | -55 °C | 125 °C | 3 | Signal | Polyamide (PA6T) Nylon 6T | Housing/Shell (Unthreaded) | Panel Mount Through Hole | Receptacle Female Sockets | UL94 V-0 | 5 A | Copper Alloy | 62 | ||
MH Connectors | Gold | Nickel Plated Steel | 4 | Black | Flash | D-Sub High Density | Shielded | -55 °C | 125 °C | 3 | Signal | Polybutylene Terephthalate (PBT) Glass Filled | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | UL94 V-0 | 3 A | Copper Alloy | 62 | 24 AWG | 28 AWG | ||
MH Connectors | Gold | Solder | Nickel Plated Steel | 4 | Black | Flash | D-Sub High Density | Board Lock Shielded | -55 °C | 125 °C | 3 | Signal | Polyamide (PA6T) Nylon 6T | Board Side (4-40) Mating Side Female Screwlock (4-40) | Panel Mount Through Hole | Receptacle Female Sockets | UL94 V-0 | 5 A | Copper Alloy | 62 | ||
MH Connectors | Gold | Solder | Nickel Plated Steel | 4 | Black | Flash | D-Sub High Density | Grounding Indents Shielded | -50 °C | 125 °C | 3 | Signal | Polyamide (PA6T) Nylon 6T | 4-40 Board Side | Panel Mount Through Hole | Male Pins Plug | UL94 V-0 | 5 A | Copper Alloy | 62 | ||
MH Connectors | Gold | Solder | Nickel Plated Steel | 4 | Black | Flash | D-Sub High Density | Board Lock Grounding Indents | -55 °C | 125 °C | 3 | Signal | Polyamide (PA6T) Nylon 6T | 4-40 Board Side | Panel Mount Through Hole | Male Pins Plug | UL94 V-0 | 5 A | Copper Alloy | 62 | ||
MH Connectors | Gold | Nickel Plated Steel | 4 | Black | Flash | D-Sub High Density | Grounding Indents Shielded | -55 °C | 105 ░C | 3 | Signal | Polybutylene Terephthalate (PBT) Glass Filled | Cable Side | Male Pins Plug | UL94 V-0 | 5 A | Brass | 62 | 24 AWG | 28 AWG | ||
MH Connectors | Gold | Nickel Plated Steel | 4 | Black | Flash | D-Sub High Density | Grounding Indents Shielded | -55 °C | 105 ░C | 3 | Signal | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (Unthreaded) | Male Pins Plug | UL94 V-0 | 5 A | Brass | 62 | 24 AWG | 28 AWG | ||
MH Connectors | Gold | Solder | Nickel Plated Steel | 4 | Black | Flash | D-Sub High Density | Grounding Indents Shielded | -50 °C | 125 °C | 3 | Signal | Polyamide (PA6T) Nylon 6T | Housing/Shell (Unthreaded) | Panel Mount Through Hole | Male Pins Plug | UL94 V-0 | 5 A | Copper Alloy | 62 | ||
MH Connectors | Gold | Solder | Nickel Plated Steel | 4 | Black | Flash | D-Sub High Density | Grounding Indents Shielded | -50 °C | 125 °C | 3 | Signal | Polyamide (PA6T) Nylon 6T | 4-40 | Panel Mount Through Hole | Male Pins Plug | UL94 V-0 | 5 A | Copper Alloy | 62 | ||
MH Connectors | Gold | Nickel Plated Steel | 4 | Black | Flash | D-Sub High Density | Shielded | -55 °C | 125 °C | 3 | Signal | Polybutylene Terephthalate (PBT) Glass Filled | Housing/Shell (Unthreaded) | Receptacle Female Sockets | UL94 V-0 | 3 A | Copper Alloy | 62 | 24 AWG | 28 AWG |
