180-M62-103L021

Active

MH Connectors

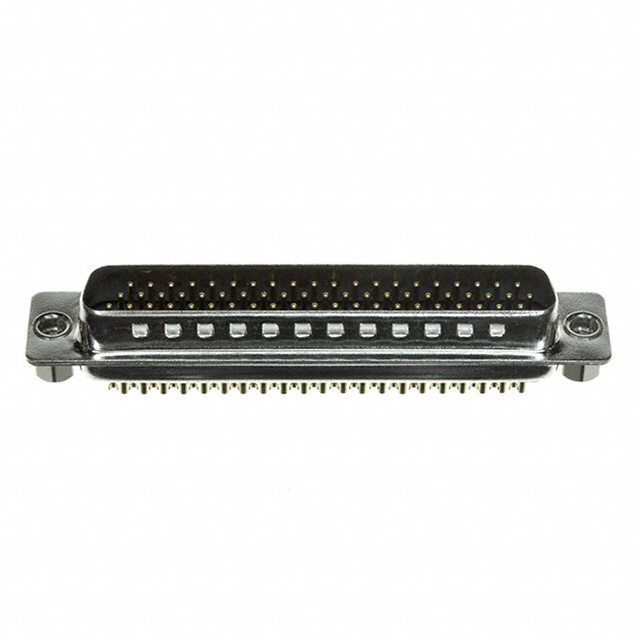

D SUB CONNECTOR, PLUG, 180 M SERIES, 62 CONTACTS, DC, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miscellaneous EN +2

180-M62-103L021

Active

MH Connectors

D SUB CONNECTOR, PLUG, 180 M SERIES, 62 CONTACTS, DC, SOLDER

Deep-Dive with AI

DocumentsDatasheet Miscellaneous EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	180-M62-103L021

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Shielded
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG

180-M62 Series

Part	Contact Finish	Termination	Shell Material, Finish	Shell Size, Connector Layout	Color	Contact Finish Thickness	Connector Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Type	Dielectric Material	Flange Feature	Mounting Type	Connector Type	Material Flammability Rating	Current Rating (Amps)	Contact Material	Number of Positions	Wire Gauge [Min]	Wire Gauge [Max]
MH Connectors 180-M62-213R001	Gold	Solder	Nickel Plated Steel	4	Black	Flash	D-Sub High Density	Shielded	-55 °C	125 °C	3	Signal	Polyamide (PA6T) Nylon 6T	Housing/Shell (Unthreaded)	Panel Mount Through Hole	Receptacle Female Sockets	UL94 V-0	5 A	Copper Alloy	62
MH Connectors 180-M62-203L031	Gold		Nickel Plated Steel	4	Black	Flash	D-Sub High Density	Shielded	-55 °C	125 °C	3	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Female Screwlock (4-40) Mating Side		Receptacle Female Sockets	UL94 V-0	3 A	Copper Alloy	62	24 AWG	28 AWG
MH Connectors 180-M62-213R911	Gold	Solder	Nickel Plated Steel	4	Black	Flash	D-Sub High Density	Board Lock Shielded	-55 °C	125 °C	3	Signal	Polyamide (PA6T) Nylon 6T	Board Side (4-40) Mating Side Female Screwlock (4-40)	Panel Mount Through Hole	Receptacle Female Sockets	UL94 V-0	5 A	Copper Alloy	62
MH Connectors 180-M62-113R021	Gold	Solder	Nickel Plated Steel	4	Black	Flash	D-Sub High Density	Grounding Indents Shielded	-50 °C	125 °C	3	Signal	Polyamide (PA6T) Nylon 6T	4-40 Board Side	Panel Mount Through Hole	Male Pins Plug	UL94 V-0	5 A	Copper Alloy	62
MH Connectors 180-M62-113R051	Gold	Solder	Nickel Plated Steel	4	Black	Flash	D-Sub High Density	Board Lock Grounding Indents	-55 °C	125 °C	3	Signal	Polyamide (PA6T) Nylon 6T	4-40 Board Side	Panel Mount Through Hole	Male Pins Plug	UL94 V-0	5 A	Copper Alloy	62
MH Connectors 180-M62-103L021	Gold		Nickel Plated Steel	4	Black	Flash	D-Sub High Density	Grounding Indents Shielded	-55 °C	105 ░C	3	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Cable Side		Male Pins Plug	UL94 V-0	5 A	Brass	62	24 AWG	28 AWG
MH Connectors 180-M62-103L001	Gold		Nickel Plated Steel	4	Black	Flash	D-Sub High Density	Grounding Indents Shielded	-55 °C	105 ░C	3	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)		Male Pins Plug	UL94 V-0	5 A	Brass	62	24 AWG	28 AWG
MH Connectors 180-M62-113R001	Gold	Solder	Nickel Plated Steel	4	Black	Flash	D-Sub High Density	Grounding Indents Shielded	-50 °C	125 °C	3	Signal	Polyamide (PA6T) Nylon 6T	Housing/Shell (Unthreaded)	Panel Mount Through Hole	Male Pins Plug	UL94 V-0	5 A	Copper Alloy	62
MH Connectors 180-M62-113R031	Gold	Solder	Nickel Plated Steel	4	Black	Flash	D-Sub High Density	Grounding Indents Shielded	-50 °C	125 °C	3	Signal	Polyamide (PA6T) Nylon 6T	4-40	Panel Mount Through Hole	Male Pins Plug	UL94 V-0	5 A	Copper Alloy	62
MH Connectors 180-M62-203L001	Gold		Nickel Plated Steel	4	Black	Flash	D-Sub High Density	Shielded	-55 °C	125 °C	3	Signal	Polybutylene Terephthalate (PBT) Glass Filled	Housing/Shell (Unthreaded)		Receptacle Female Sockets	UL94 V-0	3 A	Copper Alloy	62	24 AWG	28 AWG
