R2E133-BH66-07 - R2E133-BH66-07

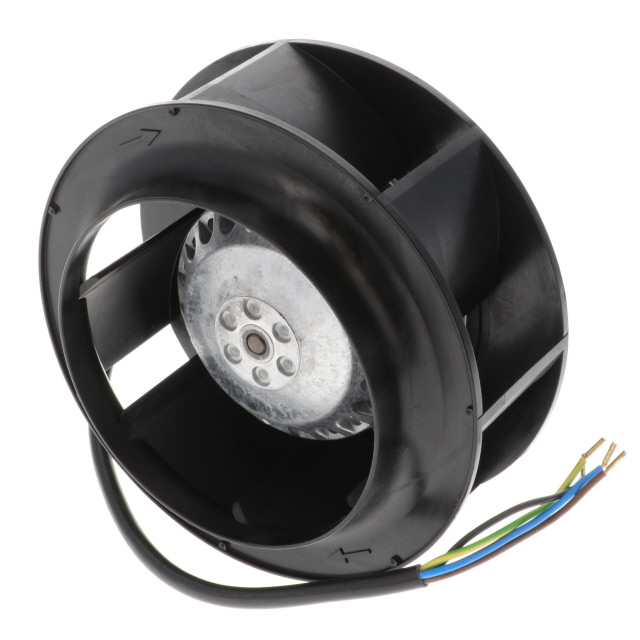

R2E133-BH66-07

Active
ebm-papst Inc.

BLOWERS & CENTRIFUGAL FANS AC BACKWARD-CURVED MOTORIZED IMPELLER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
R2E133-BH66-07 - R2E133-BH66-07

R2E133-BH66-07

Active
ebm-papst Inc.

BLOWERS & CENTRIFUGAL FANS AC BACKWARD-CURVED MOTORIZED IMPELLER

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationR2E133-BH66-07
Approval AgencyCCC, EAC, CE
Bearing TypeBall
Fan TypeMotorized Impellers
FeaturesCapacitor, Thermal Overload Protector (TOP)
Ingress ProtectionIP44
Material - BladePlastic
Operating Temperature [Max]65 °C
Operating Temperature [Max]65 °C
Operating Temperature [Min]-25 °C
Operating Temperature [Min]-25 °C
Power (Watts)28 W
RPM3200 RPM
Size / Dimension [diameter]133.4 mm
Termination4 Wire Leads with Splice Terminals
Voltage - Rated230 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 168.95
10$ 155.61
SagerN/A 1$ 171.95
2$ 166.74
5$ 161.84
10$ 157.21
20$ 152.85
50$ 140.20
100$ 136.51

Description

General part information

R2E133 Series

Fan Motorized Impellers 230VAC Round - 133.4mm Dia Ball 4 Wire Leads with Splice Terminals

Documents

Technical documentation and resources

Datasheet

Datasheet
