R2E133-BH72-13

Active

ebm-papst Inc.

AC MOTORIZED IMPELLER

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC MOTORIZED IMPELLER

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Voltage - Rated	Fan Type	Size / Dimension [diameter]	Power (Watts)	Air Flow	Air Flow	Bearing Type	Termination	Material - Blade	Weight	Weight	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Features	Ingress Protection	RPM
ebm-papst Inc. R2E133-BH72-13	CE CSA UL	115 VAC	Motorized Impellers	133 mm	30 W	203 CFM	5.68 mł/min	Ball	2 Wire Leads	Nylon Polyamide (PA)	1.5 lb	680.4 g	91 mm
ebm-papst Inc. R2E133-BH94-22	CE CSA UL VDE	115 VAC	Motorized Impellers	133.4 mm	20 W			Ball	4 Wire Leads with Splice Terminals	Plastic			60.6 mm	65 °C	-25 °C	65 °C	-25 °C	0.18 A	Capacitor Thermal Overload Protector (TOP)	IP44
ebm-papst Inc. R2E133-BH66-05	CCC CE EAC	230 VAC	Motorized Impellers	133 mm	27 W			Ball		Fiberglass Reinforced Nylon Polyamide (PA)	1.5 lb	680.4 g	91 mm		-25 °C	60 °C				IP44	3300 RPM
ebm-papst Inc. R2E133-BH66-07	CCC CE EAC	230 VAC	Motorized Impellers	133.4 mm	28 W			Ball	4 Wire Leads with Splice Terminals	Plastic				65 °C	-25 °C	65 °C	-25 °C		Capacitor Thermal Overload Protector (TOP)	IP44	3200 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

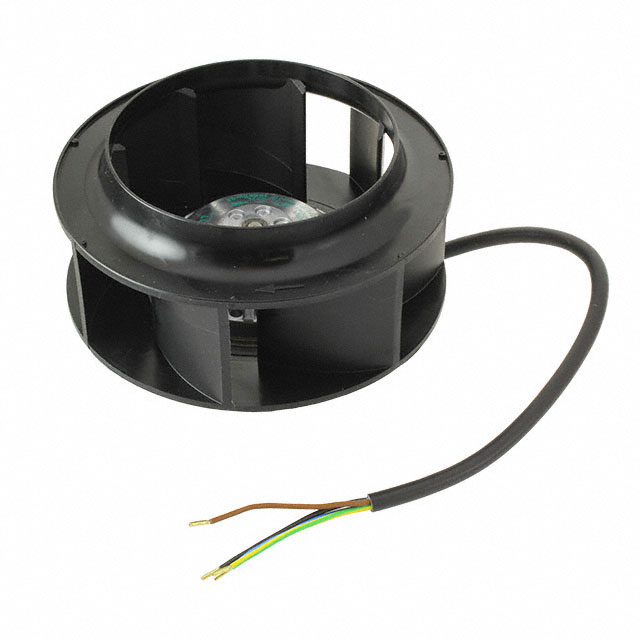

Fan Motorized Impellers 115VAC Round - 133mm Dia Ball 203.0 CFM (5.68m³/min) 2 Wire Leads
