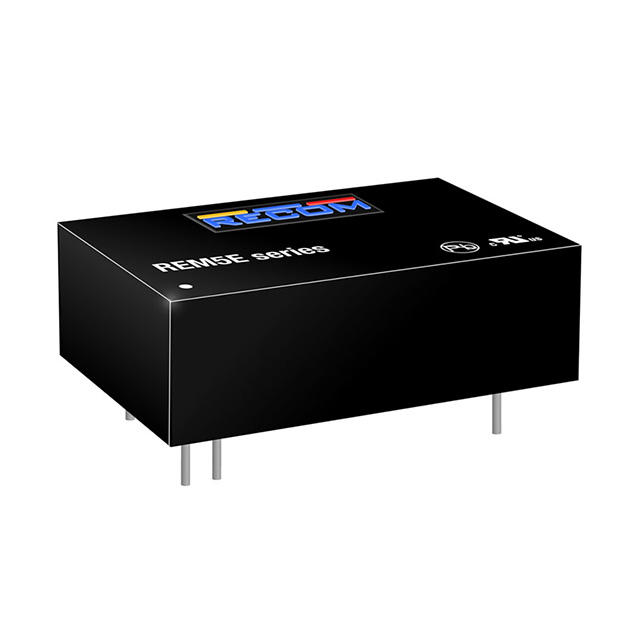

REM5E-0505S/R10/A/X1

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 2:1, 5 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

REM5E-0505S/R10/A/X1

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, MEDICAL, DIP, 2:1, 5 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REM5E-0505S/R10/A/X1

Applications	Medical
Approval Agency	CB, cURus
Current - Output (Max) [Max]	1 A
Efficiency	75 %
Features	SCP, UVLO, OVP, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 7 Leads
Power (Watts)	5 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	9 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	10 kV
Voltage - Output 1	5 V

REM5E-4824 Series

Isolated DC/DC Converters - Through Hole 5W 36-75Vin +/-05Vout 500mA

...

Part	Type	Applications	Current - Output (Max) [Max]	Power (Watts)	Features	Approval Agency	Package / Case	Voltage - Input (Max) [Max]	Efficiency	Mounting Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]
RECOM Power REM5E-0505S/R10/A/CTRL/X1	Isolated Module	Medical	1 A	5 W	OCP OVP Remote On/Off SCP UVLO	CB cURus	24-DIP Module 7 Leads	9 V	75 %	Through Hole	5 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	10 kV	-40 °C	80 C	4.5 V	1
RECOM Power REM5E-4812D/R10/A/CTRL	Isolated Module	Medical		5 W	OCP OVP Remote On/Off SCP	CB cURus	24-DIP Module 7 Leads	75 V	84 %	Through Hole	12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	10 kV	-40 °C	80 C	36 V	2	208 mA	208 mA	-12 V
RECOM Power REM5E-4815D/R8/A	Isolated Module	Medical		5 W	OCP OVP SCP	CB cURus	24-DIP Module 7 Leads	75 V	84 %	Through Hole	15 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	8 kV	-40 °C	80 C	36 V	2	166 mA		-15 V	166 mA
RECOM Power REM5E-2405D/R8/A/CTRL/X1	Isolated Module	Medical		5 W	OCP OVP Remote On/Off SCP UVLO	CB cURus	24-DIP Module 7 Leads	36 V	81 %	Through Hole	5 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	8 kV	-40 °C	80 C	18 V	2	500 mA		-5 V	500 mA
RECOM Power REM5E-0505D/R6/A/SMD	Isolated Module	Medical		5 W	OCP OVP SCP	CB cURus	24-SMD Module 18 Leads	9 V	75 %	Surface Mount	5 V	31.8 mm	0.43 "	1.25 "		0.8 in		6000 V	-40 °C	80 C	4.5 V	2	500 mA		-5 V	500 mA	10.9 mm	20.3 mm
RECOM Power REM5E-0505S/R10/A/X1	Isolated Module	Medical	1 A	5 W	OCP OVP SCP UVLO	CB cURus	24-DIP Module 7 Leads	9 V	75 %	Through Hole	5 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	10 kV	-40 °C	80 C	4.5 V	1
RECOM Power REM5E-0512S/R6/A/SMD	Isolated Module	Medical		5 W	OCP OVP SCP	CB cURus	24-SMD Module 18 Leads	9 V	81 %	Surface Mount	12 V	31.8 mm	0.43 "	1.25 "		0.8 in		6000 V	-40 °C	80 C	4.5 V	1					10.9 mm	20.3 mm
RECOM Power REM5E-1212S/R8/A/X1	Isolated Module	Medical		5 W	OCP OVP SCP UVLO	CB cURus	24-DIP Module 7 Leads	18 V		Through Hole	12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	8 kV	-40 °C	80 C	9 V	1
RECOM Power REM5E-4805S/R6/A/SMD/X1	Isolated Module	Medical	1 A	5 W	OCP OVP SCP UVLO	CB cURus	24-SMD Module 18 Leads	75 V		Surface Mount	5 V	31.8 mm	0.43 "	1.25 "		0.8 in		6000 V	-40 °C	80 C	36 V	1					10.9 mm	20.3 mm
RECOM Power REM5E-2412S/R10/A/X1	Isolated Module	Medical		5 W	OCP OVP SCP UVLO	CB cURus	24-DIP Module 7 Leads	36 V	84 %	Through Hole	12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	10 kV	-40 °C	80 C	18 V	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	15	$ 52.35
Newark	Each	10	$ 62.86
		25	$ 55.95
		50	$ 51.34
		100	$ 48.38
		250	$ 46.74
Sager	N/A	1	$ 54.86
		5	$ 53.08
		10	$ 50.63
		25	$ 49.12
		50	$ 48.40
		100	$ 47.01
		250	$ 43.88

Description

General part information

REM5E-4824 Series

Isolated DC/DC Converters - Through Hole 5W 36-75Vin +/-05Vout 500mA
