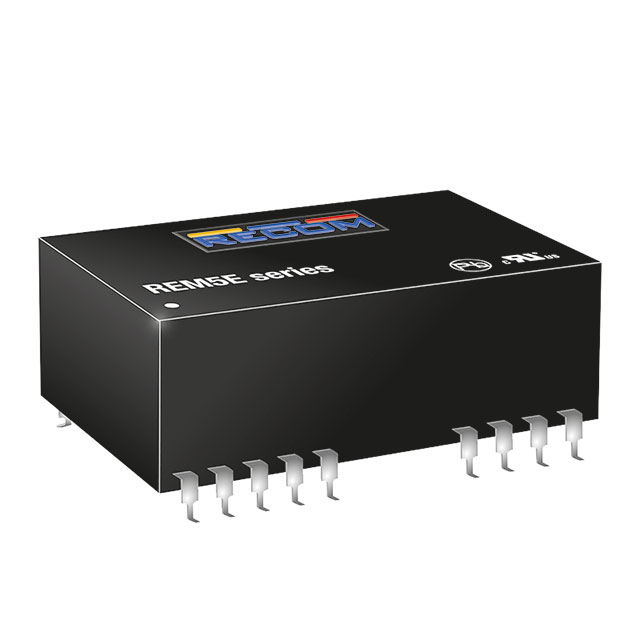

REM5E-0512S/R6/A/SMD

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 5W 4.5-9VIN 12VOUT 417MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

REM5E-0512S/R6/A/SMD

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 5W 4.5-9VIN 12VOUT 417MA

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REM5E-0512S/R6/A/SMD

Applications	Medical
Approval Agency	CB, cURus
Efficiency	81 %
Features	SCP, OCP, OVP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Package / Case	24-SMD Module, 18 Leads
Power (Watts)	5 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.43 "
Size / Dimension [z]	10.9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	9 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	6000 V
Voltage - Output 1	12 V

REM5E-4824 Series

Isolated DC/DC Converters - Through Hole 5W 36-75Vin +/-05Vout 500mA

...

Part	Type	Applications	Current - Output (Max) [Max]	Power (Watts)	Features	Approval Agency	Package / Case	Voltage - Input (Max) [Max]	Efficiency	Mounting Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]
RECOM Power REM5E-0505S/R10/A/CTRL/X1	Isolated Module	Medical	1 A	5 W	OCP OVP Remote On/Off SCP UVLO	CB cURus	24-DIP Module 7 Leads	9 V	75 %	Through Hole	5 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	10 kV	-40 °C	80 C	4.5 V	1
RECOM Power REM5E-4812D/R10/A/CTRL	Isolated Module	Medical		5 W	OCP OVP Remote On/Off SCP	CB cURus	24-DIP Module 7 Leads	75 V	84 %	Through Hole	12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	10 kV	-40 °C	80 C	36 V	2	208 mA	208 mA	-12 V
RECOM Power REM5E-4815D/R8/A	Isolated Module	Medical		5 W	OCP OVP SCP	CB cURus	24-DIP Module 7 Leads	75 V	84 %	Through Hole	15 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	8 kV	-40 °C	80 C	36 V	2	166 mA		-15 V	166 mA
RECOM Power REM5E-2405D/R8/A/CTRL/X1	Isolated Module	Medical		5 W	OCP OVP Remote On/Off SCP UVLO	CB cURus	24-DIP Module 7 Leads	36 V	81 %	Through Hole	5 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	8 kV	-40 °C	80 C	18 V	2	500 mA		-5 V	500 mA
RECOM Power REM5E-0505D/R6/A/SMD	Isolated Module	Medical		5 W	OCP OVP SCP	CB cURus	24-SMD Module 18 Leads	9 V	75 %	Surface Mount	5 V	31.8 mm	0.43 "	1.25 "		0.8 in		6000 V	-40 °C	80 C	4.5 V	2	500 mA		-5 V	500 mA	10.9 mm	20.3 mm
RECOM Power REM5E-0505S/R10/A/X1	Isolated Module	Medical	1 A	5 W	OCP OVP SCP UVLO	CB cURus	24-DIP Module 7 Leads	9 V	75 %	Through Hole	5 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	10 kV	-40 °C	80 C	4.5 V	1
RECOM Power REM5E-0512S/R6/A/SMD	Isolated Module	Medical		5 W	OCP OVP SCP	CB cURus	24-SMD Module 18 Leads	9 V	81 %	Surface Mount	12 V	31.8 mm	0.43 "	1.25 "		0.8 in		6000 V	-40 °C	80 C	4.5 V	1					10.9 mm	20.3 mm
RECOM Power REM5E-1212S/R8/A/X1	Isolated Module	Medical		5 W	OCP OVP SCP UVLO	CB cURus	24-DIP Module 7 Leads	18 V		Through Hole	12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	8 kV	-40 °C	80 C	9 V	1
RECOM Power REM5E-4805S/R6/A/SMD/X1	Isolated Module	Medical	1 A	5 W	OCP OVP SCP UVLO	CB cURus	24-SMD Module 18 Leads	75 V		Surface Mount	5 V	31.8 mm	0.43 "	1.25 "		0.8 in		6000 V	-40 °C	80 C	36 V	1					10.9 mm	20.3 mm
RECOM Power REM5E-2412S/R10/A/X1	Isolated Module	Medical		5 W	OCP OVP SCP UVLO	CB cURus	24-DIP Module 7 Leads	36 V	84 %	Through Hole	12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	10 kV	-40 °C	80 C	18 V	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 45.71
		5	$ 44.25
		10	$ 43.65
		25	$ 42.26
		50	$ 40.35
		100	$ 39.19
		250	$ 36.86
Sager	N/A	1	$ 45.71
		5	$ 44.25
		10	$ 42.21
		25	$ 40.95
		50	$ 40.35
		100	$ 39.19
		250	$ 36.59

Description

General part information

REM5E-4824 Series

Isolated DC/DC Converters - Through Hole 5W 36-75Vin +/-05Vout 500mA

Documents

Technical documentation and resources

Datasheet

Document
