PN5180A0ET/C1J

Active

Freescale Semiconductor - NXP

HIGH-PERFORMANCE MULTI-PROTOCOL FULL NFC FORUM-COMPLIANT FRONTEND/ REEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PN5180A0ET/C1J

Active

Freescale Semiconductor - NXP

HIGH-PERFORMANCE MULTI-PROTOCOL FULL NFC FORUM-COMPLIANT FRONTEND/ REEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PN5180A0ET/C1J

Frequency	13.56 MHz
Interface	SPI, UART
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 °C
Standards	NFC, FeliCa, ISO 18092, ISO 21481, ISO 15693, ISO 18000-3, ISO 14443, MIFARE

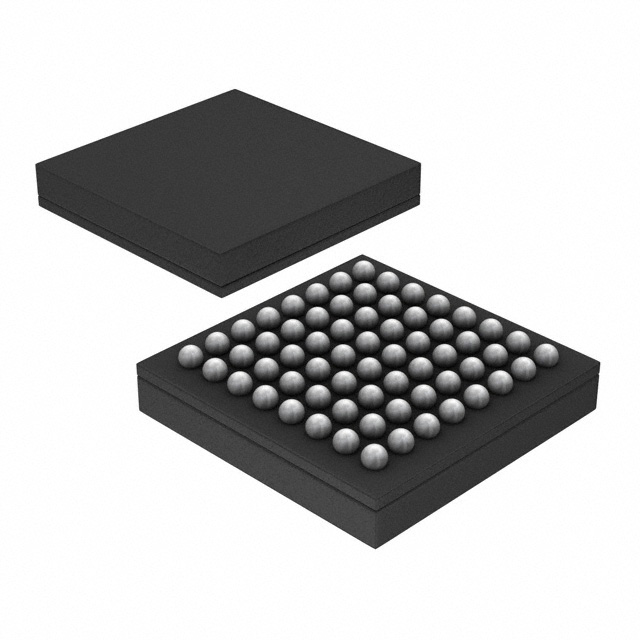

Supplier Device Package	64-TFBGA (5.5x5.5)
Type	RFID Reader/Transponder
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

PN5180 Series

Part	Standards	Voltage - Supply	Frequency	Interface	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Type	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Freescale Semiconductor - NXP PN5180A0HN/C3E	ISO 14443 ISO 15693	3.3 V	13.56 MHz	SPI UART	40-VFQFN Exposed Pad	-30 ░C	85 °C	40-HVQFN (6x6)	RFID Reader/Transponder	Surface Mount
Freescale Semiconductor - NXP PN5180A0ET/C3QL	ISO 14443 ISO 15693	3.3 V	13.56 MHz	SPI UART		-30 ░C	85 °C	64-TFBGA (5.5x5.5)	RFID Reader/Transponder	Surface Mount
Freescale Semiconductor - NXP PN5180A0ET/C3J	ISO 14443 ISO 15693	3.3 V	13.56 MHz	SPI UART		-30 ░C	85 °C	64-TFBGA (5.5x5.5)	RFID Reader/Transponder	Surface Mount
Freescale Semiconductor - NXP PN5180A0HN/C1E	FeliCa ISO 14443 ISO 15693 ISO 18000-3 ISO 18092 ISO 21481 MIFARE NFC		13.56 MHz	SPI UART	40-VFQFN Exposed Pad	-30 °C	85 °C	40-HVQFN (6x6)	RFID Reader/Transponder	Surface Mount	2.7 V	5.5 V
Freescale Semiconductor - NXP PN5180A0ET/C4J	FeliCa ISO 14443 ISO 15693 ISO 18000-3 ISO 18092 ISO 21481 MIFARE NFC		13.56 MHz	SPI UART		-30 °C	85 °C	64-TFBGA (5.5x5.5)	RFID Reader/Transponder	Surface Mount	2.7 V	5.5 V
Freescale Semiconductor - NXP PN5180A0HN/C4E	FeliCa ISO 14443 ISO 15693 ISO 18000-3 ISO 18092 ISO 21481 MIFARE NFC		13.56 MHz	SPI UART	40-VFQFN Exposed Pad	-30 °C	85 °C	40-HVQFN (6x6)	RFID Reader/Transponder	Surface Mount	2.7 V	5.5 V
Freescale Semiconductor - NXP PN5180A0HN/C2Y	FeliCa ISO 14443 ISO 15693 ISO 18000-3 ISO 18092 ISO 21481 MIFARE NFC		13.56 MHz	SPI UART	40-VFQFN Exposed Pad	-30 °C	85 °C	40-HVQFN (6x6)	RFID Reader/Transponder	Surface Mount	2.7 V	5.5 V
Freescale Semiconductor - NXP PN5180A0HN/C1Y	FeliCa ISO 14443 ISO 15693 ISO 18000-3 ISO 18092 ISO 21481 MIFARE NFC		13.56 MHz	SPI UART	40-VFQFN Exposed Pad	-30 °C	85 °C	40-HVQFN (6x6)	RFID Reader/Transponder	Surface Mount	2.7 V	5.5 V
Freescale Semiconductor - NXP PN5180A0ET/C2QL	FeliCa ISO 14443 ISO 15693 ISO 18000-3 ISO 18092 ISO 21481 MIFARE NFC		13.56 MHz	SPI UART		-30 °C	85 °C	64-TFBGA (5.5x5.5)	RFID Reader/Transponder	Surface Mount	2.7 V	5.5 V
Freescale Semiconductor - NXP PN5180A0ET/C1J	FeliCa ISO 14443 ISO 15693 ISO 18000-3 ISO 18092 ISO 21481 MIFARE NFC		13.56 MHz	SPI UART		-30 °C	85 °C	64-TFBGA (5.5x5.5)	RFID Reader/Transponder	Surface Mount	2.7 V	5.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.52
		10	$ 9.50
		25	$ 9.06
		100	$ 7.87
		250	$ 7.51
		500	$ 6.85
		1000	$ 5.97
	Digi-Reel®	1	$ 10.52
		10	$ 9.50
		25	$ 9.06
		100	$ 7.87
		250	$ 7.51
		500	$ 6.85
		1000	$ 5.97
	Tape & Reel (TR)	4000	$ 5.75
Newark	Each	500	$ 5.96

Description

General part information

PN5180 Series

RFID Reader/Transponder IC 13.56MHz FeliCa, ISO 14443, ISO 15693, ISO 18000-3, ISO 18092, ISO 21481, MIFARE, NFC SPI, UART 2.7V ~ 5.5V 64-TFBGA

Documents

Technical documentation and resources
