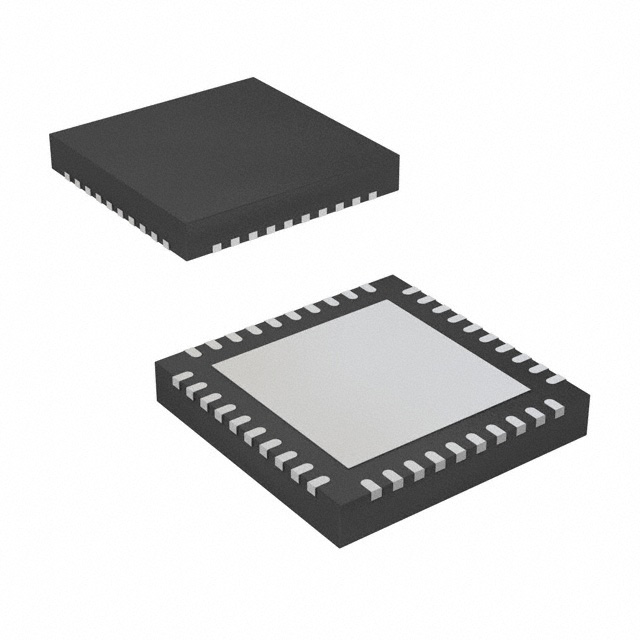

PN5180A0HN/C2Y
ActiveFreescale Semiconductor - NXP
IC RFID RDR/TRAN 13.56MZ 40HVQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PN5180A0HN/C2Y
ActiveFreescale Semiconductor - NXP
IC RFID RDR/TRAN 13.56MZ 40HVQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PN5180A0HN/C2Y |
|---|---|
| Frequency | 13.56 MHz |
| Interface | SPI, UART |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Package / Case | 40-VFQFN Exposed Pad |
| Standards | NFC, FeliCa, ISO 18092, ISO 21481, ISO 15693, ISO 18000-3, ISO 14443, MIFARE |
| Supplier Device Package | 40-HVQFN (6x6) |
| Type | RFID Reader/Transponder |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 10.52 | |
| 10 | $ 9.50 | |||
| 25 | $ 9.06 | |||
| 100 | $ 7.87 | |||
| 250 | $ 7.52 | |||
| 500 | $ 6.85 | |||
| 1000 | $ 5.97 | |||
| Digi-Reel® | 1 | $ 10.52 | ||
| 10 | $ 9.50 | |||
| 25 | $ 9.06 | |||
| 100 | $ 7.87 | |||
| 250 | $ 7.52 | |||
| 500 | $ 6.85 | |||
| 1000 | $ 5.97 | |||
| Tape & Reel (TR) | 4000 | $ 5.75 | ||
Description
General part information
PN5180 Series
RFID Reader/Transponder IC 13.56MHz FeliCa, ISO 14443, ISO 15693, ISO 18000-3, ISO 18092, ISO 21481, MIFARE, NFC SPI, UART 2.7V ~ 5.5V 40-VFQFN Exposed Pad
