20020012-G081B01LF
ActiveAmphenol Anytek
PLUGGABLE TERMINAL BLOCK, 5 MM, 8 POSITIONS, 28 AWG, 16 AWG, 2.5 MM², SCREW
Deep-Dive with AI
Search across all available documentation for this part.
20020012-G081B01LF
ActiveAmphenol Anytek
PLUGGABLE TERMINAL BLOCK, 5 MM, 8 POSITIONS, 28 AWG, 16 AWG, 2.5 MM², SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 20020012-G081B01LF |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Current - UL | 10 A |
| Features | Retention Latches (Non-Wire Side), Mating Flange |
| Housing Material | Thermoplastic Resin |
| Insulation Height | 1.083 in |
| Insulation Height | 27.51 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 8 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 8 |
| Screw Size | M2.5 |
| Termination Style | Screw - Pressure Clip |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Type | Plug, Female Sockets |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 22 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 1 mm² |
| Wire Strip Length [Max] | 7 mm |
| Wire Strip Length [Min] | 6 mm |
20020012 Series
| Part | Wire Strip Length [Max] | Wire Strip Length [Min] | Current - UL | Features | Insulation Height | Insulation Height | Material Flammability Rating | Screw Size | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Termination Style | Voltage - UL | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] | Torque - Screw | Torque - Screw | Contact Material | Number of Levels | Positions Per Level | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Type | Color | Contact Mating Finish | Pitch [x] | Pitch [x] | Number of Positions | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Anytek | 7 mm | 6 mm | 10 A | Mating Flange Retention Latches (Non-Wire Side) | 1.083 in | 27.51 mm | UL94 V-0 | M2.5 | 12 AWG | 22 AWG | Screw - Pressure Clip | 300 V | 1 mm˛ | 2.5 mm˛ | 0.4 Nm | 3.5 Lb-In | Copper Alloy | 1 | 10 | Free Hanging (In-Line) | -40 °C | 115 °C | Thermoplastic Resin | Plug Female Sockets | Green | Tin | 0.2 in | 5.08 mm | 10 | ||
Amphenol Anytek | 7 mm | 6 mm | 10 A | Mating Flange Retention Latches (Non-Wire Side) | 1.083 in | 27.51 mm | UL94 V-0 | M2.5 | 12 AWG | 22 AWG | Screw - Pressure Clip | 300 V | 1 mm˛ | 2.5 mm˛ | 0.4 Nm | 3.5 Lb-In | Copper Alloy | 1 | 4 | Free Hanging (In-Line) | -40 °C | 115 °C | Thermoplastic Resin | Plug Female Sockets | Green | Tin | 0.197 in | 5 mm | 4 | ||
Amphenol Anytek | 7 mm | 6 mm | 10 A | Mating Flange Retention Latches (Non-Wire Side) | 1.083 in | 27.51 mm | UL94 V-0 | M2.5 | 12 AWG | 22 AWG | Screw - Pressure Clip | 300 V | 0.4 Nm | 3.5 Lb-In | Copper Alloy | 1 | 6 | Free Hanging (In-Line) | -40 °C | 115 °C | Thermoplastic Resin | Plug Female Sockets | Green | Tin | 0.2 in | 5.08 mm | 6 | 2.5 mm² | 1 mm² | ||
Amphenol Anytek | 7 mm | 6 mm | 10 A | Mating Flange Retention Latches (Non-Wire Side) | 1.083 in | 27.51 mm | UL94 V-0 | M2.5 | 12 AWG | 22 AWG | Screw - Pressure Clip | 300 V | 1 mm˛ | 2.5 mm˛ | 0.4 Nm | 3.5 Lb-In | Copper Alloy | 1 | 10 | Free Hanging (In-Line) | -40 °C | 115 °C | Thermoplastic Resin | Plug Female Sockets | Green | Tin | 0.197 in | 5 mm | 10 | ||
Amphenol Anytek | 7 mm | 6 mm | 10 A | Mating Flange Retention Latches (Non-Wire Side) | 1.083 in | 27.51 mm | UL94 V-0 | M2.5 | 12 AWG | 22 AWG | Screw - Pressure Clip | 300 V | 0.4 Nm | 3.5 Lb-In | Copper Alloy | 1 | 3 | Free Hanging (In-Line) | -40 °C | 115 °C | Thermoplastic Resin | Plug Female Sockets | Green | Tin | 0.2 in | 5.08 mm | 2.5 mm² | 1 mm² | |||
Amphenol Anytek | 7 mm | 6 mm | 10 A | Mating Flange Retention Latches (Non-Wire Side) | 1.083 in | 27.51 mm | UL94 V-0 | M2.5 | 12 AWG | 22 AWG | Screw - Pressure Clip | 300 V | 0.4 Nm | 3.5 Lb-In | Copper Alloy | 1 | 8 | Free Hanging (In-Line) | -40 °C | 115 °C | Thermoplastic Resin | Plug Female Sockets | Green | Tin | 0.197 in | 5 mm | 8 | 2.5 mm² | 1 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
20020012 Series

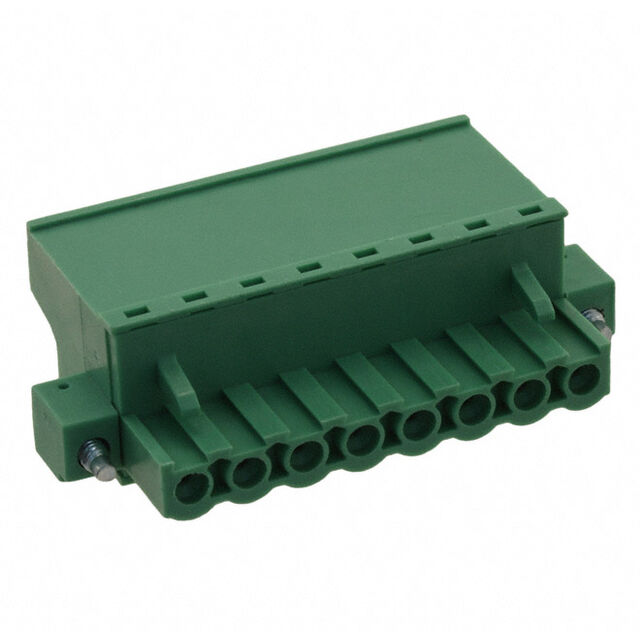

8 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
