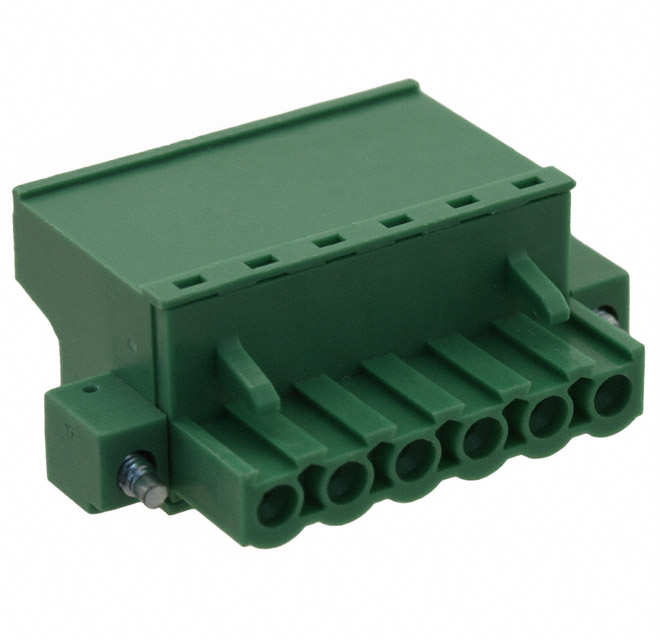

20020012-G101B01LF

Active

Amphenol Anytek

TERM BLOCK PLUG 10POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

20020012-G101B01LF

Active

Amphenol Anytek

TERM BLOCK PLUG 10POS STR 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	20020012-G101B01LF

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	10 A
Features	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Thermoplastic Resin
Insulation Height	1.083 in
Insulation Height	27.51 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	10
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	10
Screw Size	M2.5
Termination Style	Screw - Pressure Clip
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm˛ [Max]	2.5 mm˛
Wire Gauge or Range - mm˛ [Min]	1 mm˛
Wire Strip Length [Max]	7 mm
Wire Strip Length [Min]	6 mm

20020012 Series

Part	Wire Strip Length [Max]	Wire Strip Length [Min]	Current - UL	Features	Insulation Height	Insulation Height	Material Flammability Rating	Screw Size	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Voltage - UL	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Torque - Screw	Torque - Screw	Contact Material	Number of Levels	Positions Per Level	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Type	Color	Contact Mating Finish	Pitch [x]	Pitch [x]	Number of Positions	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]
Amphenol Anytek 20020012-H101B01LF	7 mm	6 mm	10 A	Mating Flange Retention Latches (Non-Wire Side)	1.083 in	27.51 mm	UL94 V-0	M2.5	12 AWG	22 AWG	Screw - Pressure Clip	300 V	1 mm˛	2.5 mm˛	0.4 Nm	3.5 Lb-In	Copper Alloy	1	10	Free Hanging (In-Line)	-40 °C	115 °C	Thermoplastic Resin	Plug Female Sockets	Green	Tin	0.2 in	5.08 mm	10
Amphenol Anytek 20020012-G041B01LF	7 mm	6 mm	10 A	Mating Flange Retention Latches (Non-Wire Side)	1.083 in	27.51 mm	UL94 V-0	M2.5	12 AWG	22 AWG	Screw - Pressure Clip	300 V	1 mm˛	2.5 mm˛	0.4 Nm	3.5 Lb-In	Copper Alloy	1	4	Free Hanging (In-Line)	-40 °C	115 °C	Thermoplastic Resin	Plug Female Sockets	Green	Tin	0.197 in	5 mm	4
Amphenol Anytek 20020012-H061B01LF	7 mm	6 mm	10 A	Mating Flange Retention Latches (Non-Wire Side)	1.083 in	27.51 mm	UL94 V-0	M2.5	12 AWG	22 AWG	Screw - Pressure Clip	300 V			0.4 Nm	3.5 Lb-In	Copper Alloy	1	6	Free Hanging (In-Line)	-40 °C	115 °C	Thermoplastic Resin	Plug Female Sockets	Green	Tin	0.2 in	5.08 mm	6	2.5 mm²	1 mm²
Amphenol Anytek 20020012-G101B01LF	7 mm	6 mm	10 A	Mating Flange Retention Latches (Non-Wire Side)	1.083 in	27.51 mm	UL94 V-0	M2.5	12 AWG	22 AWG	Screw - Pressure Clip	300 V	1 mm˛	2.5 mm˛	0.4 Nm	3.5 Lb-In	Copper Alloy	1	10	Free Hanging (In-Line)	-40 °C	115 °C	Thermoplastic Resin	Plug Female Sockets	Green	Tin	0.197 in	5 mm	10
Amphenol Anytek 20020012-H031B01LF	7 mm	6 mm	10 A	Mating Flange Retention Latches (Non-Wire Side)	1.083 in	27.51 mm	UL94 V-0	M2.5	12 AWG	22 AWG	Screw - Pressure Clip	300 V			0.4 Nm	3.5 Lb-In	Copper Alloy	1	3	Free Hanging (In-Line)	-40 °C	115 °C	Thermoplastic Resin	Plug Female Sockets	Green	Tin	0.2 in	5.08 mm		2.5 mm²	1 mm²
Amphenol Anytek 20020012-G081B01LF	7 mm	6 mm	10 A	Mating Flange Retention Latches (Non-Wire Side)	1.083 in	27.51 mm	UL94 V-0	M2.5	12 AWG	22 AWG	Screw - Pressure Clip	300 V			0.4 Nm	3.5 Lb-In	Copper Alloy	1	8	Free Hanging (In-Line)	-40 °C	115 °C	Thermoplastic Resin	Plug Female Sockets	Green	Tin	0.197 in	5 mm	8	2.5 mm²	1 mm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.64
		10	$ 4.30
		25	$ 4.02
		50	$ 3.58
		100	$ 3.50
		250	$ 3.23
		500	$ 2.92
		1000	$ 2.59

Description

General part information

20020012 Series

10 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
