BYV32E-300PQ

Active

WeEn Semiconductors Co., Ltd

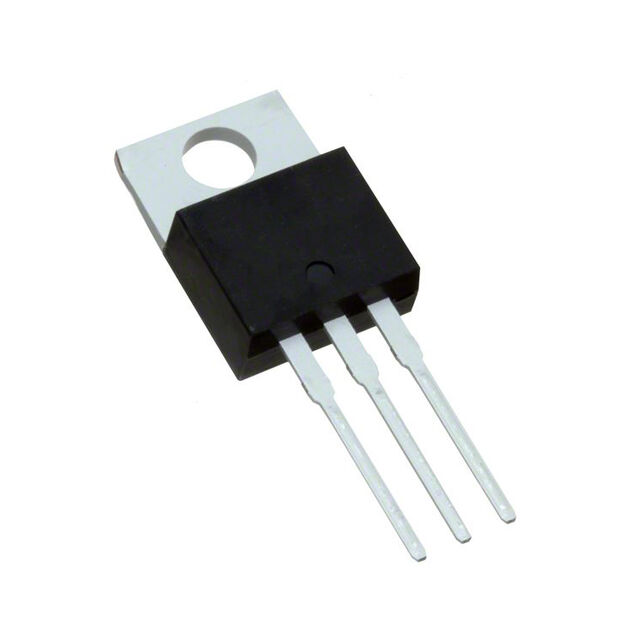

DIODE ARRAY GP 300V 10A TO-220E

Deep-Dive with AI

Search across all available documentation for this part.

BYV32E-300PQ

Active

WeEn Semiconductors Co., Ltd

DIODE ARRAY GP 300V 10A TO-220E

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BYV32E-300PQ

Current - Average Rectified (Io) (per Diode)	10 A
Current - Reverse Leakage @ Vr	20 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-220-3
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-220E
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	300 V
Voltage - Forward (Vf) (Max) @ If	1.25 V

BYV32 Series

Part	Current - Reverse Leakage @ Vr	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Package / Case	Reverse Recovery Time (trr)	Speed	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Technology	Operating Temperature - Junction	Operating Temperature - Junction [Max]
WeEn Semiconductors Co., Ltd BYV32E-200,127	30 µA	1 Pair Common Cathode	20 A	TO-220-3	25 ns	200 mA 500 ns	Through Hole	200 V	1.15 V	TO-220AB	Standard	150 °C
WeEn Semiconductors Co., Ltd BYV32E-100,127	30 µA	1 Pair Common Cathode	20 A	TO-220-3	25 ns	200 mA 500 ns	Through Hole	100 V	1.15 V	TO-220AB	Standard	150 °C
WeEn Semiconductors Co., Ltd BYV32EB-200,118	30 µA	1 Pair Common Cathode	20 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	25 ns	200 mA 500 ns	Surface Mount	200 V	1.15 V	D2PAK	Standard	150 °C
WeEn Semiconductors Co., Ltd BYV32EB-200PQ	5 µA	1 Pair Common Cathode	20 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	25 ns	200 mA 500 ns	Surface Mount	200 V	1.15 V	D2PAK	Standard	150 °C
WeEn Semiconductors Co., Ltd BYV32G-200,127	30 µA	1 Pair Common Cathode	20 A	I2PAK TO-262-3 Long Leads TO-262AA	25 ns	200 mA 500 ns	Through Hole	200 V	850 mV	TO-262 (I2PAK)	Standard	150 °C
WeEn Semiconductors Co., Ltd BYV32EB-300PJ	20 µA	1 Pair Common Cathode	20 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	35 ns	200 mA 500 ns	Surface Mount	300 V	1.25 V	D2PAK	Standard		175 °C
WeEn Semiconductors Co., Ltd BYV32E-300PQ	20 µA	1 Pair Common Cathode	10 A	TO-220-3	35 ns	200 mA 500 ns	Through Hole	300 V	1.25 V	TO-220E	Standard		175 °C
WeEn Semiconductors Co., Ltd BYV32E-200PQ	5 µA	1 Pair Common Cathode	10 A	TO-220-3	25 ns	200 mA 500 ns	Through Hole	200 V	850 mV	TO-220AB	Standard		175 °C
WeEn Semiconductors Co., Ltd BYV32E-150,127	30 µA	1 Pair Common Cathode	20 A	TO-220-3	25 ns	200 mA 500 ns	Through Hole		1.15 V	TO-220AB	Standard	150 °C
WeEn Semiconductors Co., Ltd BYV32EB-200PJ	5 µA	1 Pair Common Cathode	20 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	25 ns	200 mA 500 ns	Surface Mount	200 V	1.15 V	D2PAK	Standard		175 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6000	$ 0.49

Description

General part information

BYV32 Series

Diode Array 1 Pair Common Cathode 300 V 10A Through Hole TO-220-3

Documents

Technical documentation and resources

No documents available
