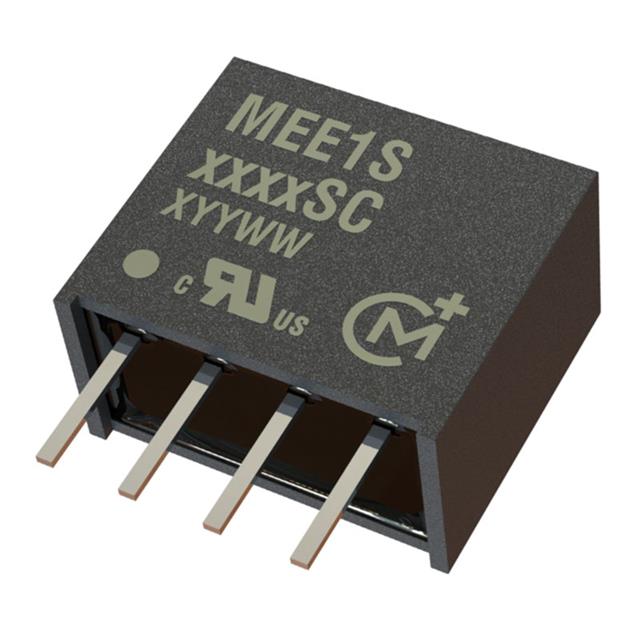

MEE1S1505SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Technical Specifications

Parameters and characteristics for this part

Isolated DC/DC Converters - Through Hole 1W 15-12V SIP4 1KVDC DC/DC

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Isolation	Type	Voltage - Input (Max) [Max]	Package / Case	Applications	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Efficiency	Voltage - Input (Min) [Min]	Package / Case
Murata Power Solutions Inc. MEE1S1512SC	83 mA	85 °C	-40 °C	1	1000 V	Isolated Module	16.5 V	4-SIP Module	ITE (Commercial)	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	12 V	85 %	13.5 V
Murata Power Solutions Inc. MEE1S1505DC	200 mA	85 °C	-40 °C	1	1000 V	Isolated Module	16.5 V	8-DIP Module	ITE (Commercial)	Through Hole	9.8 mm	0.39 "	11.5 mm	0.27 "	6.8 mm	0.45 in	5 V	83.5 %	13.5 V	4 Lead
Murata Power Solutions Inc. MEE1S1505SC	200 mA	85 °C	-40 °C	1	1000 V	Isolated Module	16.5 V	4-SIP Module	ITE (Commercial)	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	5 V	83.5 %	13.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - Through Hole 1W 15-12V SIP4 1KVDC DC/DC
