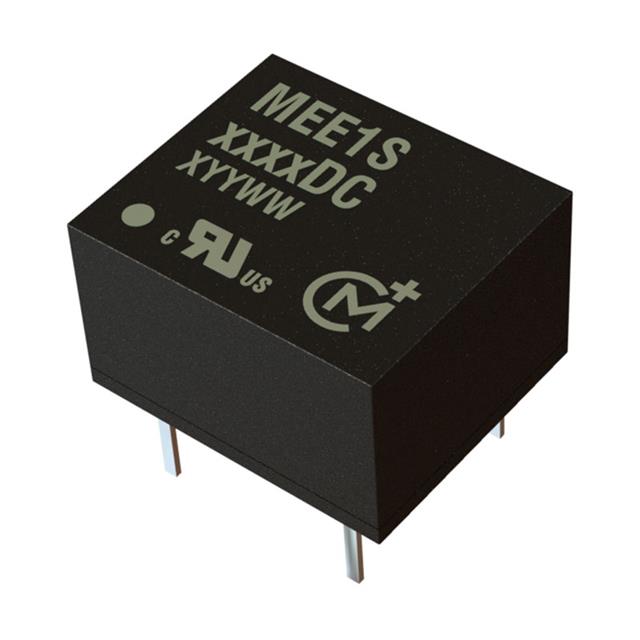

MEE1S1505DC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 5V 1W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 5V 1W

Technical Specifications

Parameters and characteristics for this part

Isolated DC/DC Converters - Through Hole 1W 15-12V SIP4 1KVDC DC/DC

Part	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Isolation	Type	Voltage - Input (Max) [Max]	Package / Case	Applications	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Efficiency	Voltage - Input (Min) [Min]	Package / Case
Murata Power Solutions Inc. MEE1S1512SC	83 mA	85 °C	-40 °C	1	1000 V	Isolated Module	16.5 V	4-SIP Module	ITE (Commercial)	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	12 V	85 %	13.5 V
Murata Power Solutions Inc. MEE1S1505DC	200 mA	85 °C	-40 °C	1	1000 V	Isolated Module	16.5 V	8-DIP Module	ITE (Commercial)	Through Hole	9.8 mm	0.39 "	11.5 mm	0.27 "	6.8 mm	0.45 in	5 V	83.5 %	13.5 V	4 Lead
Murata Power Solutions Inc. MEE1S1505SC	200 mA	85 °C	-40 °C	1	1000 V	Isolated Module	16.5 V	4-SIP Module	ITE (Commercial)	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	5 V	83.5 %	13.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated DC/DC Converters - Through Hole 1W 15-12V SIP4 1KVDC DC/DC
