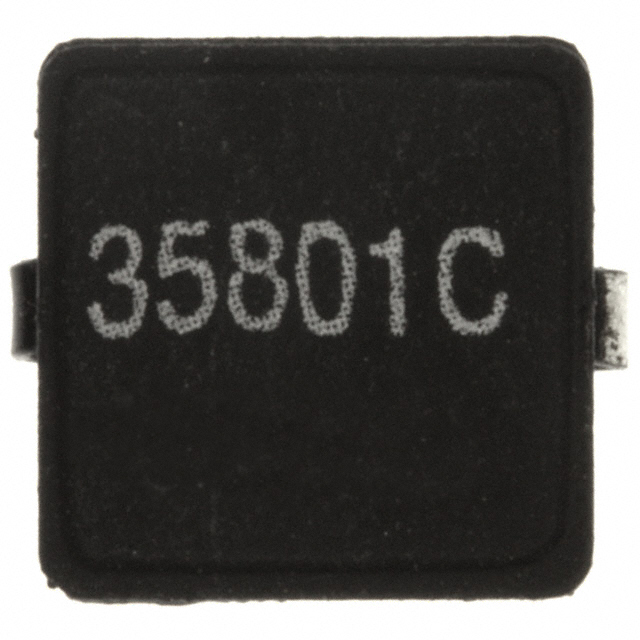

35801C

Obsolete

Murata Power Solutions Inc.

FIXED IND 800NH 9.5A 10 MOHM SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FIXED IND 800NH 9.5A 10 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power

Part	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Inductance	Current Rating (Amps)	Type	Tolerance	DC Resistance (DCR)	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. 35501C	Surface Mount	Nonstandard	125 °C	-40 °C	6.8 mm	0.268 in	6.8 mm	0.268 in	3.2 mm	0.126 in	Unshielded	500 nH	11.5 A	Wirewound	25 %
Murata Power Solutions Inc. 35152C	Surface Mount	Nonstandard	125 °C	-40 °C	6.8 mm	0.268 in	6.8 mm	0.268 in	3.2 mm	0.126 in	Unshielded	1.5 µH	6.5 A	Wirewound	25 %	19 mOhm
Murata Power Solutions Inc. 35251C	Surface Mount	Nonstandard	125 °C	-40 °C	6.8 mm	0.268 in	6.8 mm	0.268 in	3.2 mm	0.126 in	Unshielded	250 nH	15.5 A	Wirewound	25 %		4.5 mOhm
Murata Power Solutions Inc. 35801C	Surface Mount	Nonstandard	125 °C	-40 °C	6.8 mm	0.268 in	6.8 mm	0.268 in	3.2 mm	0.126 in	Unshielded	800 nH	9.5 A	Wirewound	25 %		10 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power

Technical documentation and resources

No documents available
