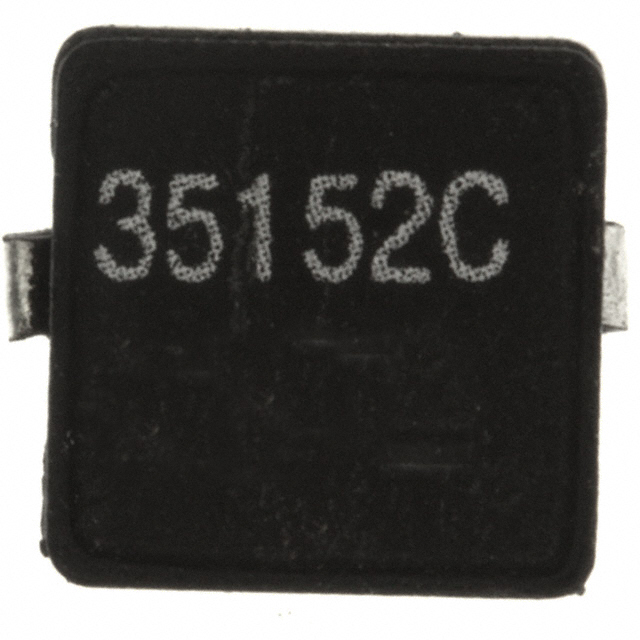

35152C

Obsolete

Murata Power Solutions Inc.

POWER INDUCTORS - SMD 1.5UH 6.5A FLAT COIL SM POWER

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

POWER INDUCTORS - SMD 1.5UH 6.5A FLAT COIL SM POWER

Technical Specifications

Parameters and characteristics for this part

Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power

Part	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Inductance	Current Rating (Amps)	Type	Tolerance	DC Resistance (DCR)	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. 35501C	Surface Mount	Nonstandard	125 °C	-40 °C	6.8 mm	0.268 in	6.8 mm	0.268 in	3.2 mm	0.126 in	Unshielded	500 nH	11.5 A	Wirewound	25 %
Murata Power Solutions Inc. 35152C	Surface Mount	Nonstandard	125 °C	-40 °C	6.8 mm	0.268 in	6.8 mm	0.268 in	3.2 mm	0.126 in	Unshielded	1.5 µH	6.5 A	Wirewound	25 %	19 mOhm
Murata Power Solutions Inc. 35251C	Surface Mount	Nonstandard	125 °C	-40 °C	6.8 mm	0.268 in	6.8 mm	0.268 in	3.2 mm	0.126 in	Unshielded	250 nH	15.5 A	Wirewound	25 %		4.5 mOhm
Murata Power Solutions Inc. 35801C	Surface Mount	Nonstandard	125 °C	-40 °C	6.8 mm	0.268 in	6.8 mm	0.268 in	3.2 mm	0.126 in	Unshielded	800 nH	9.5 A	Wirewound	25 %		10 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power

Technical documentation and resources

No documents available
