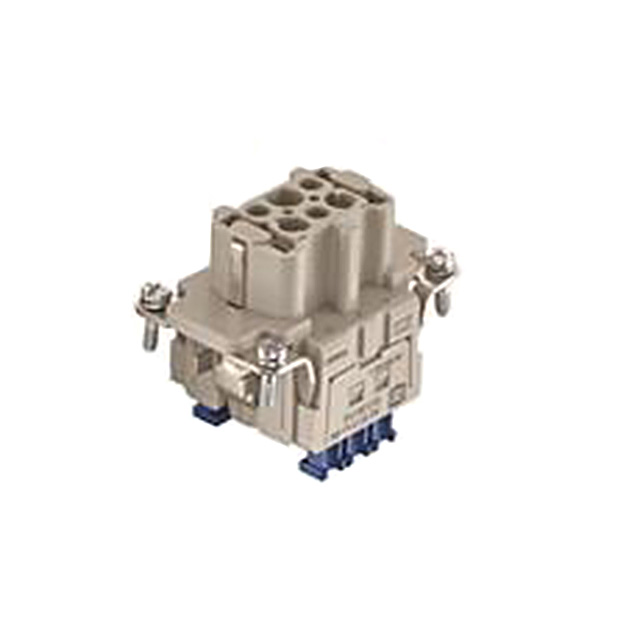

09332062748

Active

HARTING Technology Group

CONNECTOR: HDC; CONTACT INSERT; FEMALE; 16A; 500V; HAN® HMC; PIN: 6

Search across all available documentation for this part.

Active

HARTING Technology Group

CONNECTOR: HDC; CONTACT INSERT; FEMALE; 16A; 500V; HAN® HMC; PIN: 6

Technical Specifications

Parameters and characteristics for this part

Specification	09332062748

Color	Gray
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	6+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Termination Style	Tension Clamp
Voltage Rating	500 V

Part	Number of Positions	Voltage Rating	Contact Type	Current Rating (Amps)	Size	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Color	Connector Type	Housing Material	Material Flammability Rating	Termination Style	Contact Material	Contact Finish	Size
HARTING Technology Group 09332062602	6+Ground	500 V	Han E® HMC	16 A	6B	Male	125 °C	-40 °C	Gray	Insert without Contacts	Polycarbonate (PC)	UL94 V-0	Crimp
HARTING Technology Group 09332062702	6+Ground	500 V	Han E® HMC	16 A	6B	Female	125 °C	-40 °C	Gray	Insert without Contacts	Polycarbonate (PC)	UL94 V-0	Crimp
HARTING Technology Group 09332062748	6+Ground	500 V		16 A	6B	Female	125 °C	-40 °C	Gray		Polycarbonate (PC)	UL94 V-0	Tension Clamp	Copper Alloy	Gold
HARTING Technology Group 09332162648	16+Ground	500 V		16 A		Male	125 °C	-40 °C	Gray		Polycarbonate (PC)	UL94 V-0	Tension Clamp	Copper Alloy	Gold	16 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 6+Ground Position Tension Clamp
