09332062602
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, 6+PE, LESS CONTACTS, HAN E HMC SERIES, INSERT, 7 CONTACTS, 6B, PLUG
Deep-Dive with AI
Search across all available documentation for this part.
09332062602
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, 6+PE, LESS CONTACTS, HAN E HMC SERIES, INSERT, 7 CONTACTS, 6B, PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09332062602 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | Han E® HMC |
| Current Rating (Amps) | 16 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 6+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 6B |
| Termination Style | Crimp |
| Voltage Rating | 500 V |
han-r-hmc Series
| Part | Number of Positions | Voltage Rating | Contact Type | Current Rating (Amps) | Size | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Color | Connector Type | Housing Material | Material Flammability Rating | Termination Style | Contact Material | Contact Finish | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | 6+Ground | 500 V | Han E® HMC | 16 A | 6B | Male | 125 °C | -40 °C | Gray | Insert without Contacts | Polycarbonate (PC) | UL94 V-0 | Crimp | |||
HARTING Technology Group | 6+Ground | 500 V | Han E® HMC | 16 A | 6B | Female | 125 °C | -40 °C | Gray | Insert without Contacts | Polycarbonate (PC) | UL94 V-0 | Crimp | |||
HARTING Technology Group | 6+Ground | 500 V | 16 A | 6B | Female | 125 °C | -40 °C | Gray | Polycarbonate (PC) | UL94 V-0 | Tension Clamp | Copper Alloy | Gold | |||
HARTING Technology Group | 16+Ground | 500 V | 16 A | Male | 125 °C | -40 °C | Gray | Polycarbonate (PC) | UL94 V-0 | Tension Clamp | Copper Alloy | Gold | 16 B |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
han-r-hmc Series

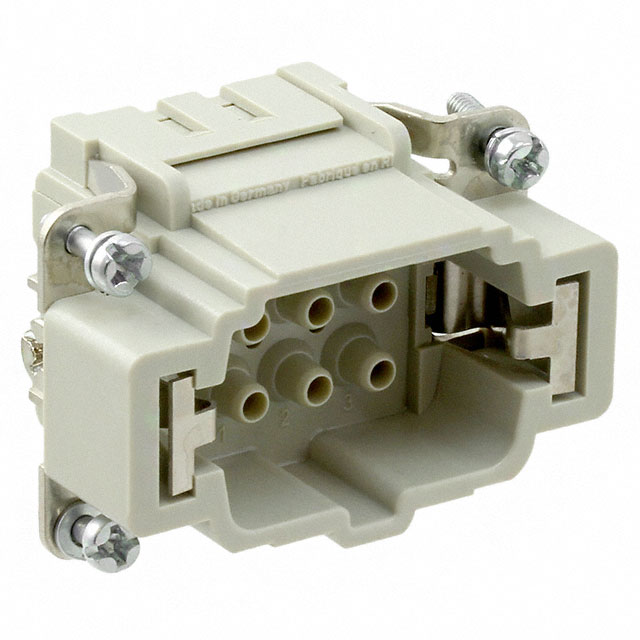

The 09332062602 from Harting is a 6 B size, Han® 6 E HMC (High Mating Cycles) male insert with crimp termination. Suitable for hoods/housings of Han® B HMC series.
