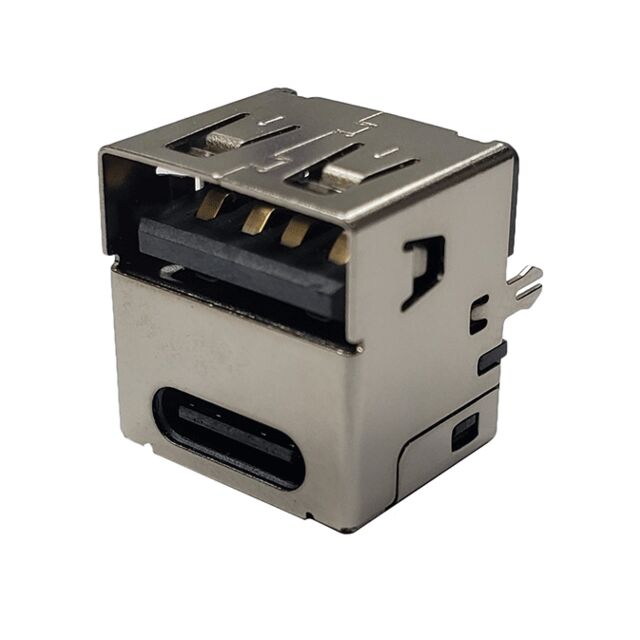

USB-C31-A-D-VT-CS1
ActiveAdam Tech
CONN USB TYPE-A AND TYPE-C VERTI
Deep-Dive with AI
Search across all available documentation for this part.
USB-C31-A-D-VT-CS1
ActiveAdam Tech
CONN USB TYPE-A AND TYPE-C VERTI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB-C31-A-D-VT-CS1 |
|---|---|
| Connector Type | USB-A (USB TYPE-A), Stacked, USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5A, 8A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Number of Contacts | 28 |
| Number of Ports | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0, USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed+ (USB 3.1)) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.62 | |
| 10 | $ 2.00 | |||
| 25 | $ 1.80 | |||
| 40 | $ 1.71 | |||
| 80 | $ 1.58 | |||
| 230 | $ 1.41 | |||
| 440 | $ 1.32 | |||
| 945 | $ 1.22 | |||
| 2400 | $ 1.11 | |||
Description
General part information
USB-C31 Series
USB-A (USB TYPE-A) and USB-C (USB TYPE-C), Stacked USB 2.0, USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed+ (USB 3.1)) Receptacle Connector 28 Position Through Hole
