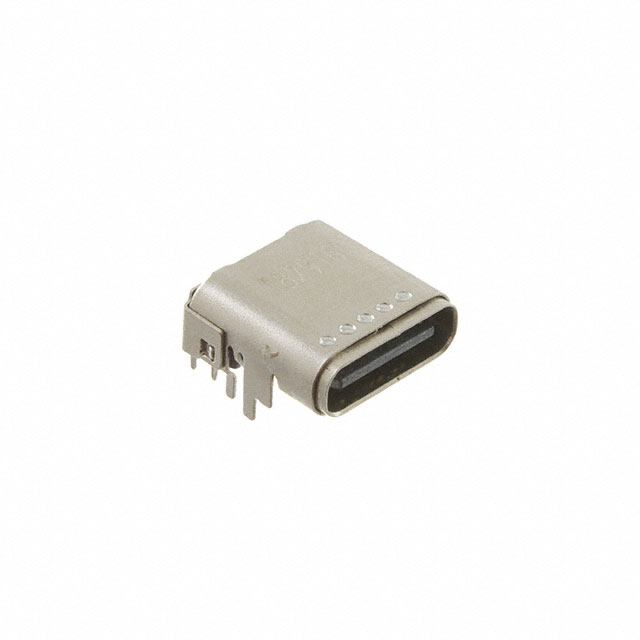

USB-C31-S-RA-CS2-SMT-BK-T/R - USB-C31-S-RA-CS2-SMT-BK-T-R

USB-C31-S-RA-CS2-SMT-BK-T/R

Active
Adam Tech

USB TYPE C , RECEPTACLE, R/A, SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1
USB-C31-S-RA-CS2-SMT-BK-T/R - USB-C31-S-RA-CS2-SMT-BK-T-R

USB-C31-S-RA-CS2-SMT-BK-T/R

Active
Adam Tech

USB TYPE C , RECEPTACLE, R/A, SM

Deep-Dive with AI

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1

Technical Specifications

Parameters and characteristics for this part

SpecificationUSB-C31-S-RA-CS2-SMT-BK-T/R
Connector TypeUSB-C (USB TYPE-C)
Contact FinishGold
Current Rating (Amps)0.25 A, 1.25 A, 5 A
FeaturesBoard Guide
GenderReceptacle
Insulation ColorBlack
Material Flammability RatingUL94 V-0
Mating Cycles10000
Mounting FeatureHorizontal
Mounting TypeThrough Hole, Surface Mount, Right Angle
Number of Contacts24
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Shell/Shielding MaterialStainless, Steel
ShieldingShielded
SpecificationsUSB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.78
10$ 2.12
25$ 1.91
50$ 1.77
100$ 1.64
250$ 1.48
Digi-Reel® 1$ 2.78
10$ 2.12
25$ 1.91
50$ 1.77
100$ 1.64
250$ 1.48
Tape & Reel (TR) 750$ 1.32
1500$ 1.23
2250$ 1.19
3750$ 1.13
5250$ 1.09
7500$ 1.07

Description

General part information

USB-C31 Series

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
