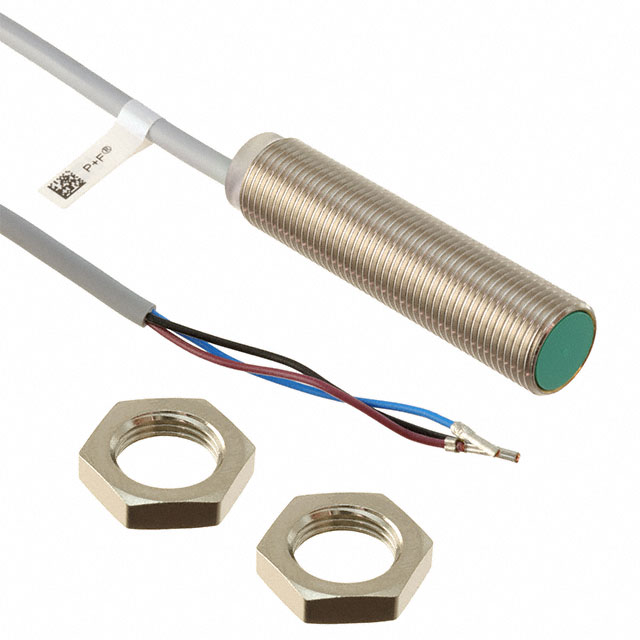

NBB4-12GM50-E2

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 4 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NBB4-12GM50-E2

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M12
Sensing Distance	4 mm
Sensing Distance	0.157 in
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

NBB4-12 Series

Part	Ingress Protection	Material - Body	Shielding	Termination Style	Indicator [custom]	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Sensor Type
PEPPERL+FUCHS NBB4-12GM65-US-V12	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	SCR-NO 2-Wire	250 VAC 300 VDC	20 VDC 20 VAC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E2-V1	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	PNP-NO 3-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-40 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-A2-V1	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	4-Wire PNP-NC/NO	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E2-V1-M	IP68 IP69K	Nickel-Plated Brass	Unshielded	Connector	LED	PNP-NO 3-Wire	60 V	5 V	Cylinder Threaded - M12	85 °C	-40 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E0-V1	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	NPN-NO 3-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E2	IP67	Nickel-Plated Brass	Unshielded	Cable	LED	PNP-NO 3-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-A0-V1	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	NPN-NC/NO 4-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E3-M	IP68 IP69K	Nickel-Plated Brass	Unshielded	Cable	LED	PNP-NC 3-Wire	60 V	5 V	Cylinder Threaded - M12	85 °C	-40 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E0	IP67	Nickel-Plated Brass	Unshielded	Cable	LED	NPN-NO 3-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM30-E3-V1	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	PNP-NC 3-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 114.15
		10	$ 95.13
		25	$ 91.96
		100	$ 88.79
Newark	Each	1	$ 129.53
		10	$ 117.87
		25	$ 113.99

Description

General part information

NBB4-12 Series

The NBB4-12GM50-E2 is an Inductive Proximity Sensor that is the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery or automation equipment. Pepperl+Fuchs offers innovative, high quality inductive sensor to meet the needs of the worldwide automation and process control markets. Standard inductive sensor features smooth or threaded stainless housings, polarity reversal and short-circuit protected, LED status indication.
