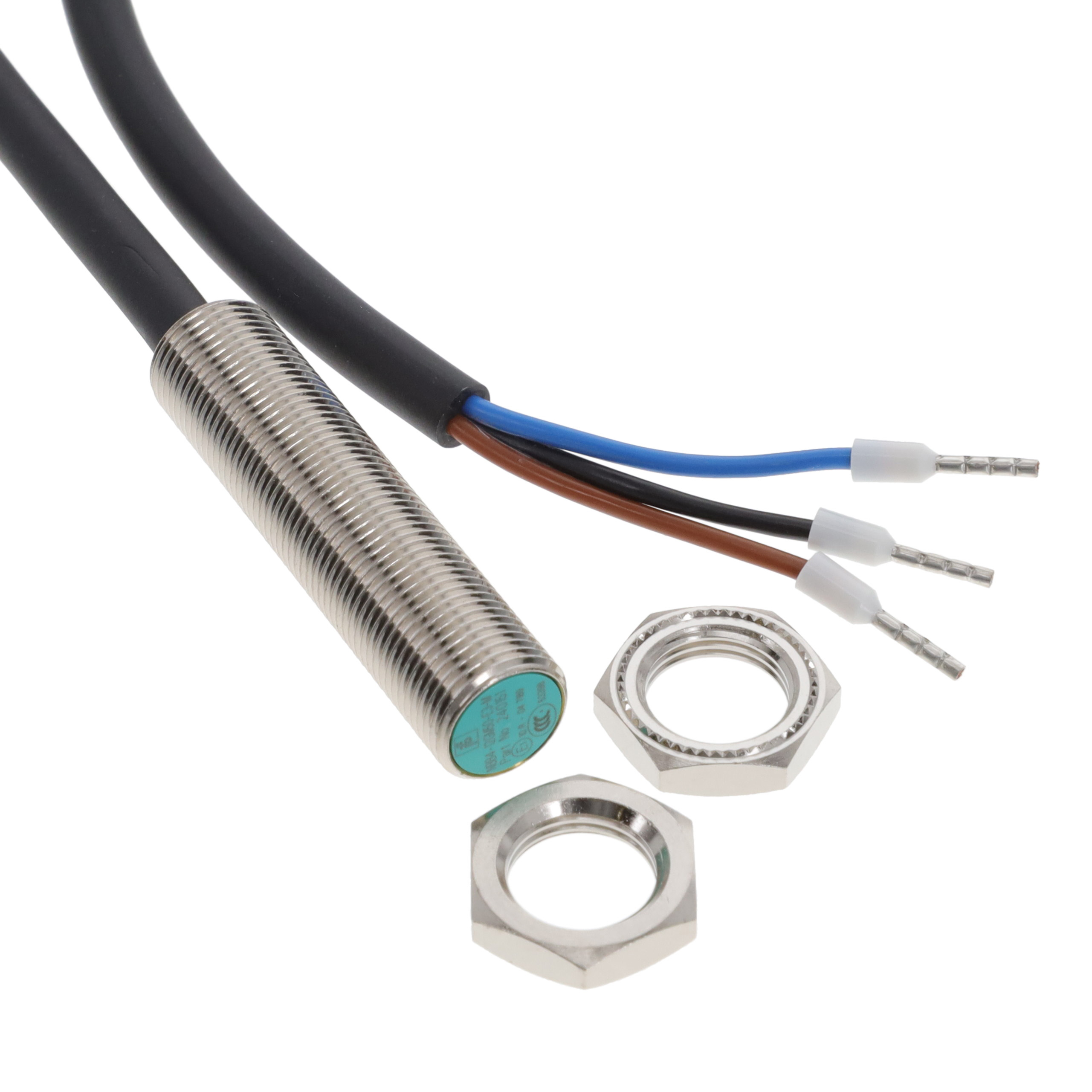

NBB4-12GM50-E3-M

Active

PEPPERL+FUCHS

INDUCTIVE SEN 4MM PNP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NBB4-12GM50-E3-M

Active

PEPPERL+FUCHS

INDUCTIVE SEN 4MM PNP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NBB4-12GM50-E3-M

Indicator [custom]	LED
Ingress Protection	IP68, IP69K
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	PNP-NC, 3-Wire
Package / Case	Cylinder, Threaded - M12
Sensing Distance	4 mm
Sensing Distance	0.157 in
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	60 V
Voltage - Supply [Min]	5 V

NBB4-12 Series

Part	Ingress Protection	Material - Body	Shielding	Termination Style	Indicator [custom]	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Sensor Type
PEPPERL+FUCHS NBB4-12GM65-US-V12	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	SCR-NO 2-Wire	250 VAC 300 VDC	20 VDC 20 VAC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E2-V1	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	PNP-NO 3-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-40 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-A2-V1	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	4-Wire PNP-NC/NO	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E2-V1-M	IP68 IP69K	Nickel-Plated Brass	Unshielded	Connector	LED	PNP-NO 3-Wire	60 V	5 V	Cylinder Threaded - M12	85 °C	-40 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E0-V1	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	NPN-NO 3-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E2	IP67	Nickel-Plated Brass	Unshielded	Cable	LED	PNP-NO 3-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-A0-V1	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	NPN-NC/NO 4-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E3-M	IP68 IP69K	Nickel-Plated Brass	Unshielded	Cable	LED	PNP-NC 3-Wire	60 V	5 V	Cylinder Threaded - M12	85 °C	-40 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM50-E0	IP67	Nickel-Plated Brass	Unshielded	Cable	LED	NPN-NO 3-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive
PEPPERL+FUCHS NBB4-12GM30-E3-V1	IP67	Nickel-Plated Brass	Unshielded	Connector	LED	PNP-NC 3-Wire	30 VDC	10 VDC	Cylinder Threaded - M12	70 °C	-25 °C	4 mm	0.157 in	Inductive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 135.48
		5	$ 109.68
		10	$ 112.90
		25	$ 109.13
		50	$ 100.46
		100	$ 98.15

Description

General part information

NBB4-12 Series

INDUCTIVE SEN 4MM PNP

Documents

Technical documentation and resources
