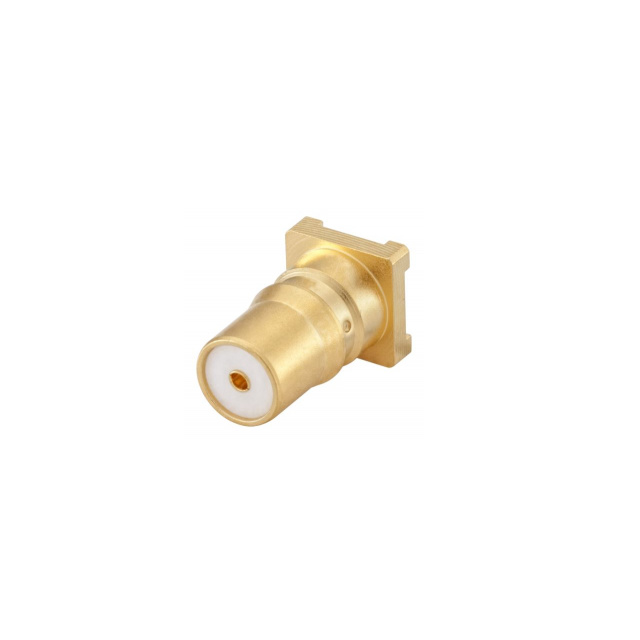

28K101-40ML5-NM

Active

Rosenberger

QMA NON MAGNETIC STRAIGHT JACK P

Search across all available documentation for this part.

Active

Rosenberger

QMA NON MAGNETIC STRAIGHT JACK P

Technical Specifications

Parameters and characteristics for this part

Specification	28K101-40ML5-NM

Body Finish	Gold
Body Material	Bronze
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	480 V

Part	Frequency - Max [Max]	Adapter Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Body Material	Adapter Series	Center Gender	Fastening Type	Dielectric Material	Convert From (Adapter End)	Conversion Type	Center Contact Plating	Body Finish	Convert To (Adapter End)	Style	Impedance	Connector Type	Number of Ports	Shield Termination	Housing Color	Contact Termination	Voltage Rating
Rosenberger 28K101-K00N5	18 GHz	Jack to Jack	Free Hanging (In-Line)	85 °C	-40 °C	Beryllium Copper	Brass	QMA to QMA	Female to Female	Snap-On	Polytetrafluoroethylene (PTFE)	Female Socket QMA Jack	Same Series	Gold	White Bronze	Female Socket QMA Jack	Straight	50 Ohms
Rosenberger 28K101-40ML5-NM	18 GHz		Surface Mount	85 °C	-40 °C	Beryllium Copper	Bronze			Snap-On	Polytetrafluoroethylene (PTFE)			Gold	Gold			50 Ohms	Female Socket Jack	1	Solder	Gold	Solder	480 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

QMA Connector Jack, Female Socket 50 Ohms Surface Mount Solder
