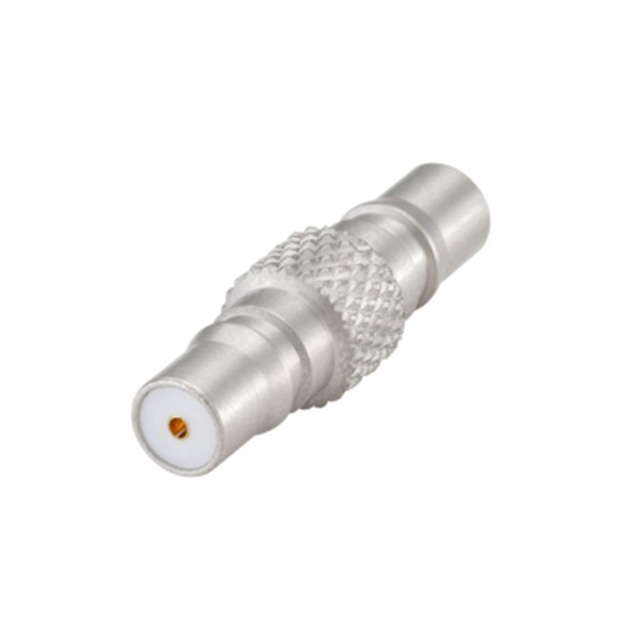

28K101-K00N5

Active

Rosenberger

ADAPT QMA JACK - QMA JACK

Search across all available documentation for this part.

Active

Rosenberger

ADAPT QMA JACK - QMA JACK

Technical Specifications

Parameters and characteristics for this part

Specification	28K101-K00N5

Adapter Series	QMA to QMA
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	QMA Jack, Female Socket
Convert To (Adapter End)	QMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Frequency - Max [Max]	Adapter Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Body Material	Adapter Series	Center Gender	Fastening Type	Dielectric Material	Convert From (Adapter End)	Conversion Type	Center Contact Plating	Body Finish	Convert To (Adapter End)	Style	Impedance	Connector Type	Number of Ports	Shield Termination	Housing Color	Contact Termination	Voltage Rating
Rosenberger 28K101-K00N5	18 GHz	Jack to Jack	Free Hanging (In-Line)	85 °C	-40 °C	Beryllium Copper	Brass	QMA to QMA	Female to Female	Snap-On	Polytetrafluoroethylene (PTFE)	Female Socket QMA Jack	Same Series	Gold	White Bronze	Female Socket QMA Jack	Straight	50 Ohms
Rosenberger 28K101-40ML5-NM	18 GHz		Surface Mount	85 °C	-40 °C	Beryllium Copper	Bronze			Snap-On	Polytetrafluoroethylene (PTFE)			Gold	Gold			50 Ohms	Female Socket Jack	1	Solder	Gold	Solder	480 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector QMA Jack, Female Socket To QMA Jack, Female Socket 50 Ohms
