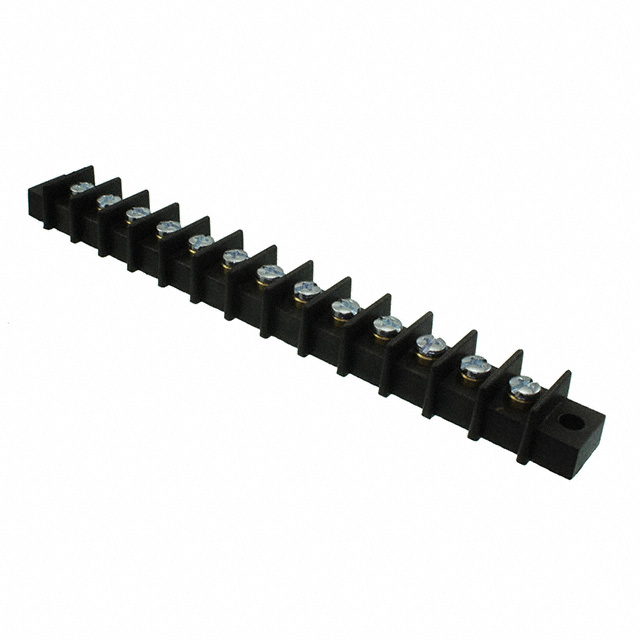

GBSX-13
ActiveCurtis Industries
CONN BARRIER STRP 13CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GBSX-13
ActiveCurtis Industries
CONN BARRIER STRP 13CIRC 0.438"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GBSX-13 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Color | Black |
| Current Rating (Amps) | 20 A |
| Features | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 13 |
| Number of Rows | 1 |
| Number of Wire Entries | 13 |
| Operating Temperature | 110 °C |
| Pitch [x] | 11.12 mm |
| Pitch [x] | 0.438 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
GBSX Series
| Part | Material - Insulation | Pitch [x] | Pitch [x] | Number of Wire Entries | Terminal Block Type | Top Termination | Operating Temperature | Mounting Type | Number of Rows | Material Flammability Rating | Terminal Screw Material | Current Rating (Amps) | Number of Circuits [custom] | Color | Bottom Termination | Wire Gauge [Min] | Wire Gauge [Max] | Features | Barrier Type | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries | Polyphenylene Oxide (PPO) | 11.12 mm | 0.438 in | 8 | Barrier Block | Screws | 110 °C | Chassis Panel | 1 | UL94 V-0 | Steel | 20 A | 8 | Black | Closed | 12 AWG | 22 AWG | Flange | 2 Wall (Dual) | |
Curtis Industries | Polyphenylene Oxide (PPO) | 11.12 mm | 0.438 in | 26 | Barrier Block | Screws | 110 °C | Chassis Panel | 1 | UL94 V-0 | Steel | 20 A | Black | Closed | 12 AWG | 22 AWG | Flange | 2 Wall (Dual) | 26 | |
Curtis Industries | Polyphenylene Oxide (PPO) | 11.12 mm | 0.438 in | 7 | Barrier Block | Screws | 110 °C | Chassis Panel | 1 | UL94 V-0 | Steel | 20 A | Black | Closed | 12 AWG | 22 AWG | Flange | 2 Wall (Dual) | 7 | |
Curtis Industries | Polyphenylene Oxide (PPO) | 11.12 mm | 0.438 in | 5 | Barrier Block | Screws | 110 °C | Chassis Panel | 1 | UL94 V-0 | Steel | 20 A | Black | Closed | 12 AWG | 22 AWG | Flange | 2 Wall (Dual) | 5 | |
Curtis Industries | Polyphenylene Oxide (PPO) | 11.12 mm | 0.438 in | 11 | Barrier Block | Screws | 110 °C | Chassis Panel | 1 | UL94 V-0 | Steel | 20 A | Black | Closed | 12 AWG | 22 AWG | Flange | 2 Wall (Dual) | 11 | |
Curtis Industries | Polyphenylene Oxide (PPO) | 11.12 mm | 0.438 in | 20 | Barrier Block | Screws | 110 °C | Chassis Panel | 1 | UL94 V-0 | Steel | 20 A | Black | Closed | 12 AWG | 22 AWG | Flange | 2 Wall (Dual) | 20 | |
Curtis Industries | Polyphenylene Oxide (PPO) | 11.12 mm | 0.438 in | 10 | Barrier Block | Screws | 110 °C | Chassis Panel | 1 | UL94 V-0 | Steel | 20 A | Black | Closed | 12 AWG | 22 AWG | Flange | 2 Wall (Dual) | 10 | |
Curtis Industries | Polyphenylene Oxide (PPO) | 11.12 mm | 0.438 in | 9 | Barrier Block | Screws | 110 °C | Chassis Panel | 1 | UL94 V-0 | Steel | 20 A | Black | Closed | 12 AWG | 22 AWG | Flange | 2 Wall (Dual) | ||
Curtis Industries | Polyphenylene Oxide (PPO) | 11.12 mm | 0.438 in | 13 | Barrier Block | Screws | 110 °C | Chassis Panel | 1 | UL94 V-0 | Steel | 20 A | Black | Closed | 12 AWG | 22 AWG | Flange | 2 Wall (Dual) | 13 | |
Curtis Industries | Polyphenylene Oxide (PPO) | 11.12 mm | 0.438 in | 3 | Barrier Block | Screws | 110 °C | Chassis Panel | 1 | UL94 V-0 | Steel | 20 A | Black | Closed | 12 AWG | 22 AWG | Flange | 2 Wall (Dual) | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.34 | |
| 10 | $ 9.10 | |||
| 25 | $ 8.58 | |||
Description
General part information
GBSX Series
13 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
