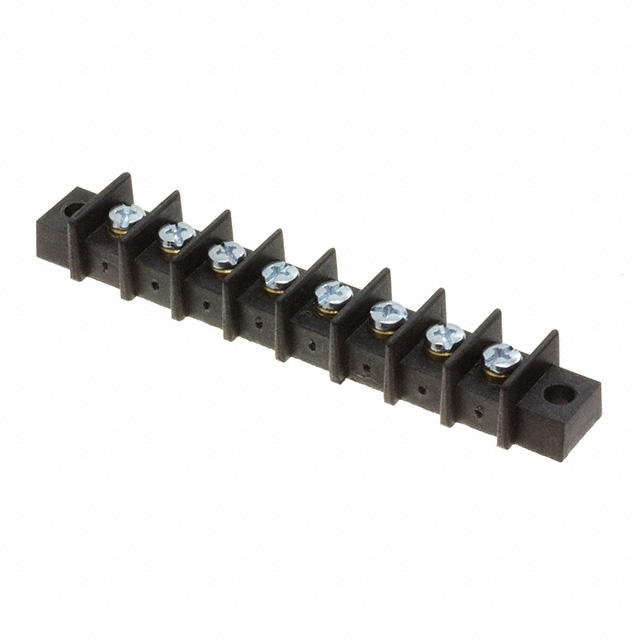

GBSX-8

Active

Curtis Industries

CONN BARRIER STRIP 8CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GBSX-8

Active

Curtis Industries

CONN BARRIER STRIP 8CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GBSX-8

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Color	Black
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits [custom]	8
Number of Rows	1
Number of Wire Entries	8
Operating Temperature	110 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

GBSX Series

Part	Material - Insulation	Pitch [x]	Pitch [x]	Number of Wire Entries	Terminal Block Type	Top Termination	Operating Temperature	Mounting Type	Number of Rows	Material Flammability Rating	Terminal Screw Material	Current Rating (Amps)	Number of Circuits [custom]	Color	Bottom Termination	Wire Gauge [Min]	Wire Gauge [Max]	Features	Barrier Type	Number of Circuits
Curtis Industries GBSX-8	Polyphenylene Oxide (PPO)	11.12 mm	0.438 in	8	Barrier Block	Screws	110 °C	Chassis Panel	1	UL94 V-0	Steel	20 A	8	Black	Closed	12 AWG	22 AWG	Flange	2 Wall (Dual)
Curtis Industries GBSX-26	Polyphenylene Oxide (PPO)	11.12 mm	0.438 in	26	Barrier Block	Screws	110 °C	Chassis Panel	1	UL94 V-0	Steel	20 A		Black	Closed	12 AWG	22 AWG	Flange	2 Wall (Dual)	26
Curtis Industries GBSX-7	Polyphenylene Oxide (PPO)	11.12 mm	0.438 in	7	Barrier Block	Screws	110 °C	Chassis Panel	1	UL94 V-0	Steel	20 A		Black	Closed	12 AWG	22 AWG	Flange	2 Wall (Dual)	7
Curtis Industries GBSX-5	Polyphenylene Oxide (PPO)	11.12 mm	0.438 in	5	Barrier Block	Screws	110 °C	Chassis Panel	1	UL94 V-0	Steel	20 A		Black	Closed	12 AWG	22 AWG	Flange	2 Wall (Dual)	5
Curtis Industries GBSX-11	Polyphenylene Oxide (PPO)	11.12 mm	0.438 in	11	Barrier Block	Screws	110 °C	Chassis Panel	1	UL94 V-0	Steel	20 A		Black	Closed	12 AWG	22 AWG	Flange	2 Wall (Dual)	11
Curtis Industries GBSX-20	Polyphenylene Oxide (PPO)	11.12 mm	0.438 in	20	Barrier Block	Screws	110 °C	Chassis Panel	1	UL94 V-0	Steel	20 A		Black	Closed	12 AWG	22 AWG	Flange	2 Wall (Dual)	20
Curtis Industries GBSX-10	Polyphenylene Oxide (PPO)	11.12 mm	0.438 in	10	Barrier Block	Screws	110 °C	Chassis Panel	1	UL94 V-0	Steel	20 A		Black	Closed	12 AWG	22 AWG	Flange	2 Wall (Dual)	10
Curtis Industries GBSX-9	Polyphenylene Oxide (PPO)	11.12 mm	0.438 in	9	Barrier Block	Screws	110 °C	Chassis Panel	1	UL94 V-0	Steel	20 A		Black	Closed	12 AWG	22 AWG	Flange	2 Wall (Dual)
Curtis Industries GBSX-13	Polyphenylene Oxide (PPO)	11.12 mm	0.438 in	13	Barrier Block	Screws	110 °C	Chassis Panel	1	UL94 V-0	Steel	20 A		Black	Closed	12 AWG	22 AWG	Flange	2 Wall (Dual)	13
Curtis Industries GBSX-3	Polyphenylene Oxide (PPO)	11.12 mm	0.438 in	3	Barrier Block	Screws	110 °C	Chassis Panel	1	UL94 V-0	Steel	20 A		Black	Closed	12 AWG	22 AWG	Flange	2 Wall (Dual)	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.03
		10	$ 9.45
		25	$ 9.02
		50	$ 8.11
		100	$ 7.68
		250	$ 6.96
		500	$ 6.48
		1000	$ 6.12

Description

General part information

GBSX Series

8 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
