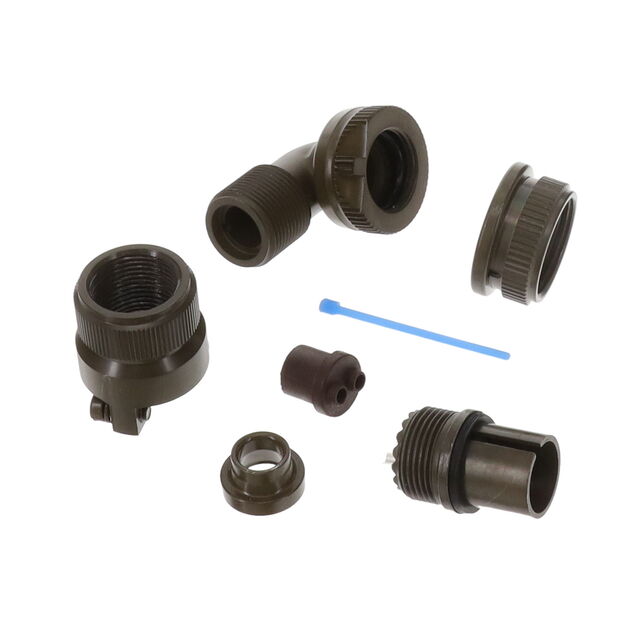

MS3108E12S-3P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3108E12S-3P |
|---|---|
| Applications | Military, Marine |
| Cable Opening [diameter] | 7.14 mm |
| Cable Opening [diameter] | 0.281 in |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Features | Coupling Nut, Cable Clamp |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 12S-3 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 41.61 | |
| 10 | $ 36.44 | |||
| 25 | $ 34.86 | |||
| 50 | $ 33.74 | |||
| 100 | $ 32.61 | |||
| 250 | $ 30.82 | |||
| Bulk | 1 | $ 105.51 | ||
| 10 | $ 91.44 | |||
| 25 | $ 80.69 | |||
| 50 | $ 72.19 | |||
| 100 | $ 63.31 | |||
Description
General part information
MS3108E12 Series
2 Position Circular Connector Plug, Male Pins Solder Cup
