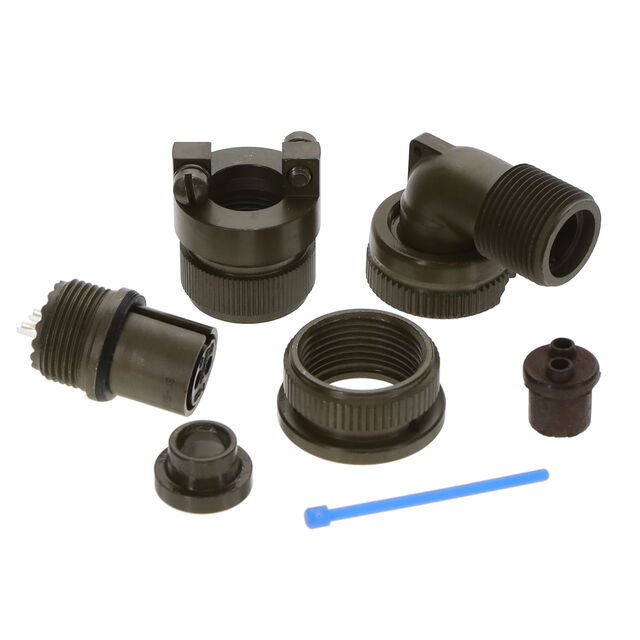

MS3108E12S-3S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 2P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN PLUG FMALE 2P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108E12S-3S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Cable Clamp
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	12S-3
Shielding	Unshielded

Part	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Qualification	Contact Material	Connector Type	Number of Positions	Insert Material	Shell Size - Insert	Mounting Type	Orientation	Contact Finish - Mating	Features	Shell Material	Color	Applications	Ingress Protection	Shielding	Shell Finish	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]	Grade
Amphenol Industrial Operations MS3108E12S-1S
Amphenol Industrial Operations MS3108E12S-2S
Amphenol Industrial Operations MS3108E12S-3S	-55 °C	125 °C	Metal	MIL-5015	Copper Alloy	Female Sockets Plug	2	Neoprene	12S-3	Free Hanging (In-Line) Right Angle	N	Silver	Cable Clamp Coupling Nut	Aluminum Alloy	Olive Drab	Marine Military	Environment Resistant	Unshielded	Olive Drab Chromate over Cadmium
Amphenol Industrial Operations MS3108E12S-3P	-55 °C	125 °C	Metal	MIL-DTL-5015	Copper Alloy	Male Pins Plug	2	Neoprene	12S-3	Free Hanging (In-Line) Right Angle	N	Silver	Cable Clamp Coupling Nut	Aluminum Alloy	Olive Drab	Marine Military	Environment Resistant	Unshielded	Olive Drab Chromate over Cadmium	13 A	7.14 mm	0.281 in	Military

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Female Sockets Solder Cup
