2280255

Active

Phoenix Contact

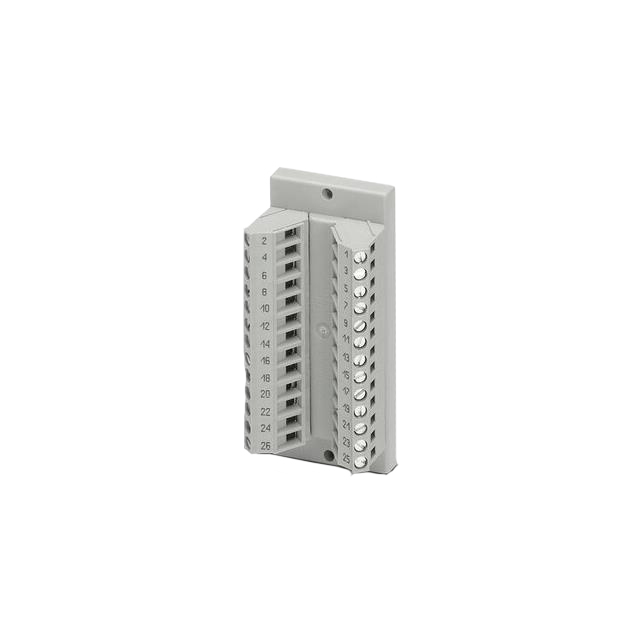

THE VARIOFACE FEED-THROUGH MODULE IMPLEMENTS A 1:1 CONNECTION BETWEEN SCREW CONNECTION TERMINAL BLOCKS AND AN IDC/FLK PIN STRIP (2.54 MM, NUMBER OF POSITIONS: 26).

Deep-Dive with AI

Search across all available documentation for this part.

Documents2280255 Datasheet

2280255

Active

Phoenix Contact

THE VARIOFACE FEED-THROUGH MODULE IMPLEMENTS A 1:1 CONNECTION BETWEEN SCREW CONNECTION TERMINAL BLOCKS AND AN IDC/FLK PIN STRIP (2.54 MM, NUMBER OF POSITIONS: 26).

Deep-Dive with AI

Documents2280255 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2280255

Convert From (Adapter End)	Terminal Blocks, Screw Connection
Convert From (Adapter End)	2 Rows, 26 Pos
Convert To (Adapter End)	Rectangular Connector, Male Pins
Convert To (Adapter End)	26 Pos, 2 Rows
Mounting Type	Feed Through, Panel Mount
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG

DFLK Series

Part	Wire Gauge [Min]	Wire Gauge [Max]	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Mounting Type
Phoenix Contact 2280255	12 AWG	24 AWG	Male Pins Rectangular Connector	2 Rows 26 Pos	Screw Connection Terminal Blocks	2 Rows 26 Pos	Feed Through Panel Mount
Phoenix Contact 2280284	12 AWG	24 AWG	Male Pins Rectangular Connector	2 Rows 50 Pos	Terminal Blocks Screw Connection 50 Pos 2 Rows		Feed Through Panel Mount
Phoenix Contact 2280271	12 AWG	24 AWG	2 Rows 40 Pos Male Pins Rectangular Connector		Screw Connection Terminal Blocks	2 Rows 40 Pos	Feed Through Panel Mount
Phoenix Contact 2280268	12 AWG	24 AWG	Male Pins Rectangular Connector	2 Rows 34 Pos	Screw Connection Terminal Blocks	2 Rows 34 Pos	Feed Through Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 108.51

Description

General part information

DFLK Series

Adapter Terminal Blocks, Screw Connection, 26 Pos, 2 Rows To Rectangular Connector, Male Pins, 26 Pos, 2 Rows

Documents

Technical documentation and resources

2280255

Datasheet
