2280271

Active

Phoenix Contact

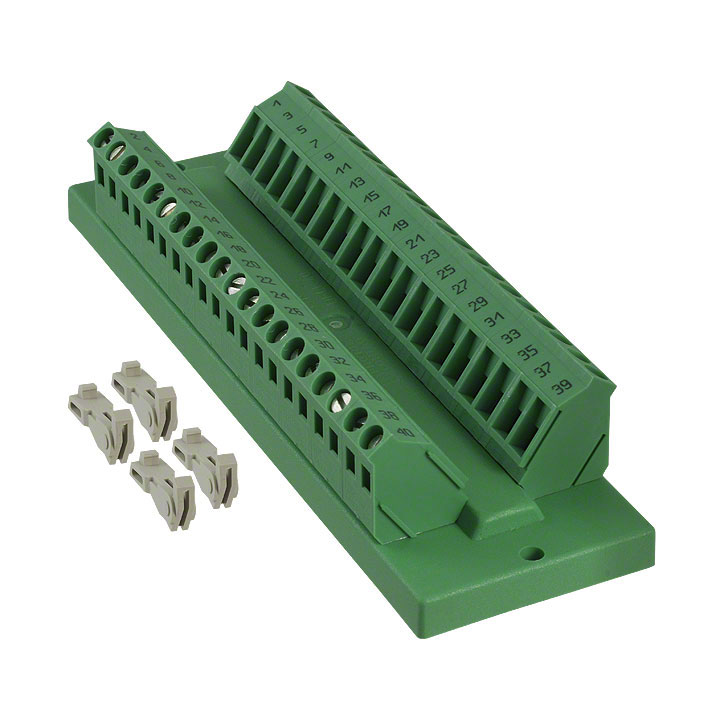

INTERFACE MODULE 40POS PNL MNT

Search across all available documentation for this part.

Active

Phoenix Contact

INTERFACE MODULE 40POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	2280271

Convert From (Adapter End)	2 Rows, 40 Pos
Convert From (Adapter End)	Screw Connection, Terminal Blocks
Convert To (Adapter End)	Male Pins, Rectangular Connector, 2 Rows, 40 Pos
Mounting Type	Feed Through, Panel Mount
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG

Part	Wire Gauge [Min]	Wire Gauge [Max]	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Mounting Type
Phoenix Contact 2280255	12 AWG	24 AWG	Male Pins Rectangular Connector	2 Rows 26 Pos	Screw Connection Terminal Blocks	2 Rows 26 Pos	Feed Through Panel Mount
Phoenix Contact 2280284	12 AWG	24 AWG	Male Pins Rectangular Connector	2 Rows 50 Pos	Terminal Blocks Screw Connection 50 Pos 2 Rows		Feed Through Panel Mount
Phoenix Contact 2280271	12 AWG	24 AWG	2 Rows 40 Pos Male Pins Rectangular Connector		Screw Connection Terminal Blocks	2 Rows 40 Pos	Feed Through Panel Mount
Phoenix Contact 2280268	12 AWG	24 AWG	Male Pins Rectangular Connector	2 Rows 34 Pos	Screw Connection Terminal Blocks	2 Rows 34 Pos	Feed Through Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Terminal Blocks, Screw Connection, 40 Pos, 2 Rows To Rectangular Connector, Male Pins, 40 Pos, 2 Rows
