19398060446 - 19398060445

19398060446

Active
HARTING Technology Group

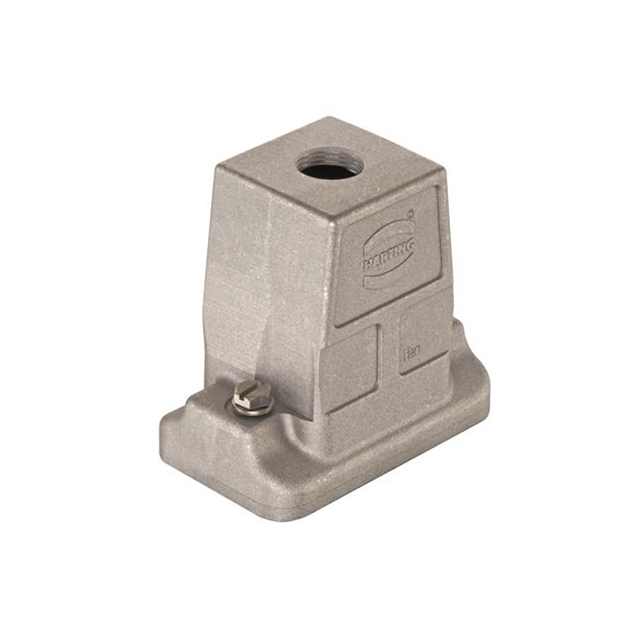

HAN 6 HP DIRECT EMC HOOD, TOP ENTRY, M25

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet19398060446 Datasheet
19398060446 - 19398060445

19398060446

Active
HARTING Technology Group

HAN 6 HP DIRECT EMC HOOD, TOP ENTRY, M25

Deep-Dive with AI

DocumentsDatasheet19398060446 Datasheet

Technical Specifications

Parameters and characteristics for this part

Specification19398060446
Connector TypeHood
Housing FinishEMC Coating
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock LocationScrew Locks on Hood
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size6B
Size / Dimension [x]3.661 inches
Size / Dimension [x]93 mm
Size / Dimension [y]2.244 "
Size / Dimension [y]57 mm
Size / Dimension [z]90 mm
Size / Dimension [z]3.543 in
StyleTop Entry
Thread SizeM25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 170.93
NewarkEach 1$ 139.72
10$ 131.87
25$ 127.94
50$ 118.52
100$ 112.24

Description

General part information

19398060 Series

Hood Connector Top Entry M25 6B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
