19398060545 - 19398060545

19398060545

Active
HARTING Technology Group

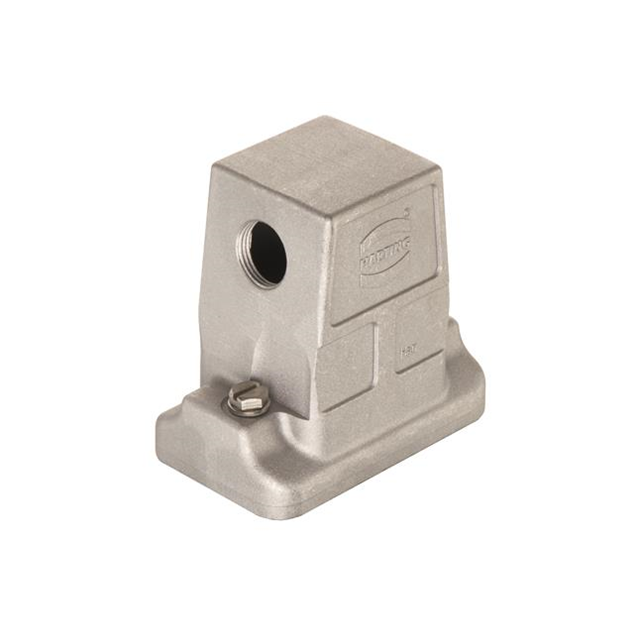

HAN 6 HP DIRECT EMC HOOD, SIDE ENTRY, M20

Deep-Dive with AI

Documents19398060545 DatasheetDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification19398060545
Connector TypeHood
Housing FinishEMC Coating
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock LocationScrew Locks on Hood
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size6B
Size / Dimension [x]3.661 in
Size / Dimension [x]93 mm
Size / Dimension [y]2.244 "
Size / Dimension [y]57 mm
Size / Dimension [z]3.583 in
Size / Dimension [z]91 mm
StyleSide Entry
Thread SizeM20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 170.93
NewarkEach 1$ 139.72
10$ 131.87
25$ 127.94
50$ 118.52
100$ 112.24

Description

General part information

19398060 Series

Hood Connector Side Entry M20 6B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
