09140063041

Active

HARTING Technology Group

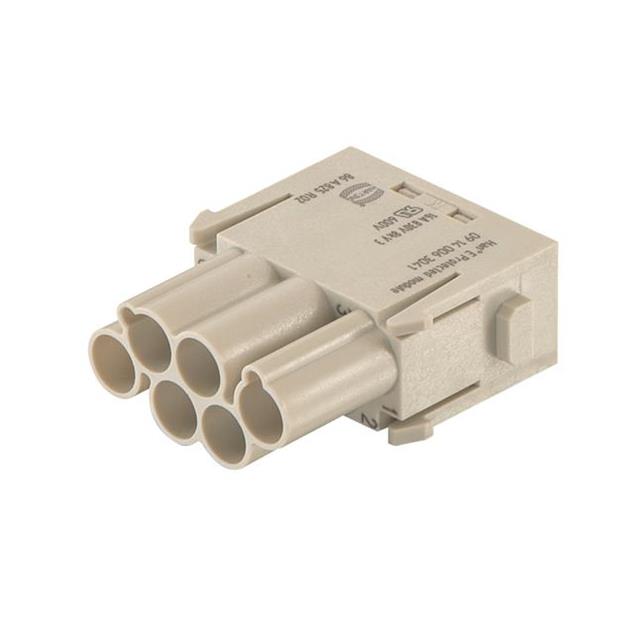

HEAVY DUTY CONNECTOR, PROTECTED PIN MODULE, LESS CONTACTS, HAN-MODULAR E SERIES, INSERT, 6 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09140063041

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PROTECTED PIN MODULE, LESS CONTACTS, HAN-MODULAR E SERIES, INSERT, 6 CONTACTS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140063041

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	600 V

09140063 Series

Part	Connector Type	Contact Type	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Housing Material	Material Flammability Rating	Termination Style	Voltage Rating	Color	Current Rating (Amps)
HARTING Technology Group 09140063101	Module without Contacts	Han®	Female	125 °C	-40 °C	6	Polycarbonate (PC)	UL94 V-0	Crimp	600 V	Gray	16 A
HARTING Technology Group 09140063001	Module without Contacts	Han®	Male	125 °C	-40 °C	6	Polycarbonate (PC)	UL94 V-0	Crimp	600 V	Gray	16 A
HARTING Technology Group 09140063041	Module without Contacts	Han®	Male	125 °C	-40 °C	6	Polycarbonate (PC)	UL94 V-0	Crimp	600 V	Gray	16 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.97
		10	$ 10.82
		25	$ 9.63
		50	$ 8.87
		100	$ 8.20
		250	$ 7.44
		500	$ 6.94
		1000	$ 6.51

Description

General part information

09140063 Series

The 09 14 006 3041 is a Han E Protected Module, Han-Modular® series , male, 4 contacts, 0.14 to 4mm² wire cross section area with crimp terminal. Made of polycarbonate, RAL 7032 (light grey) colour insert.
