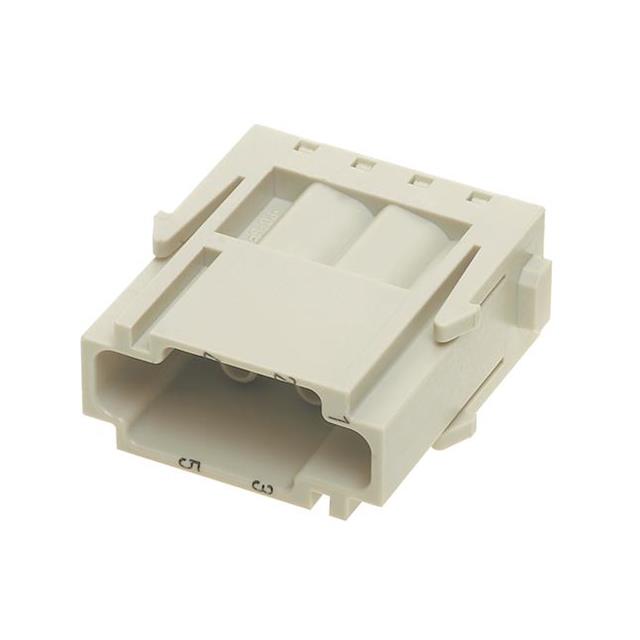

09140063001

Active

HARTING Technology Group

RECTANGULAR CONNECTOR, 6 CONTACT(S), MALE, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

RECTANGULAR CONNECTOR, 6 CONTACT(S), MALE, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	09140063001

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	600 V

Part	Connector Type	Contact Type	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Housing Material	Material Flammability Rating	Termination Style	Voltage Rating	Color	Current Rating (Amps)
HARTING Technology Group 09140063101	Module without Contacts	Han®	Female	125 °C	-40 °C	6	Polycarbonate (PC)	UL94 V-0	Crimp	600 V	Gray	16 A
HARTING Technology Group 09140063001	Module without Contacts	Han®	Male	125 °C	-40 °C	6	Polycarbonate (PC)	UL94 V-0	Crimp	600 V	Gray	16 A
HARTING Technology Group 09140063041	Module without Contacts	Han®	Male	125 °C	-40 °C	6	Polycarbonate (PC)	UL94 V-0	Crimp	600 V	Gray	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module without Contacts Gray 6 Position Crimp
