HVH-280-2/2S-HU(A)

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 2POS 9.50MM

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT HSG 2POS 9.50MM

Technical Specifications

Parameters and characteristics for this part

Specification	HVH-280-2/2S-HU(A)

Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.374 in
Pitch [x]	9.5 mm

Part	Number of Positions	For Use With/Related Products	Accessory Type	Pitch [x]	Pitch [x]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Mounting Type	Color	Note	Fastening Type	Contact Type	Number of Rows	Insulation Material	Features	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Type	Pin or Socket
Hirose Electric USA, Inc. HVH-280-2P/S-R	2	HVH-280 Series	Retainer
Hirose Electric USA, Inc. HVH-280-3S-HU				6.5 mm	0.256 in	Receptacle	125 °C	-40 °C	Crimp	Free Hanging (In-Line)	Black	Contacts Not Included	Latch Lock	Female Socket	1	Nylon Polyamide (PA)
Hirose Electric USA, Inc. HVH-280-2/2S-HO	4	HVH-280 Series															Waterproof
Hirose Electric USA, Inc. HVH-280-1214PCF									Crimp									39.4 Áin	1 Ám	14 AWG	12 AWG	Tin	Power	Blade
Hirose Electric USA, Inc. HVH-280-2/2S-WS	4	HVH-280 Series	Seal														Waterproof
Hirose Electric USA, Inc. HVH-280-4.2CF									Crimp									39.4 Áin	1 Ám			Tin	Stamped	Socket
Hirose Electric USA, Inc. HVH-280-2/2S-HU(A)	2			9.5 mm	0.374 in	Receptacle	120 °C	-40 °C	Crimp	Free Hanging (In-Line)		Contacts Not Included	Latch Holder	Female Socket	1	Polybutylene Terephthalate (PBT)	Waterproof
Hirose Electric USA, Inc. HVH-280-2/2S-HU	2			9.5 mm	0.374 in	Receptacle	120 °C	-40 °C	Crimp	Free Hanging (In-Line)			Latch Lock	Female Socket	1	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

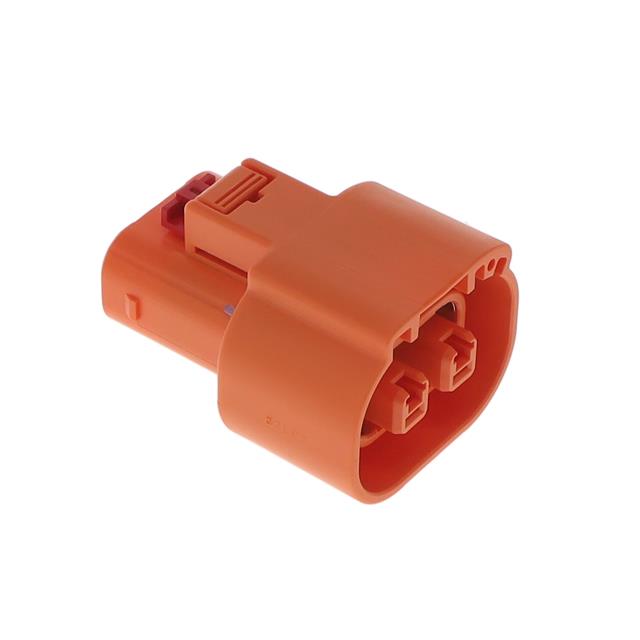

2 Rectangular Connectors - Housings Receptacle Orange 0.374" (9.50mm)

Technical documentation and resources
