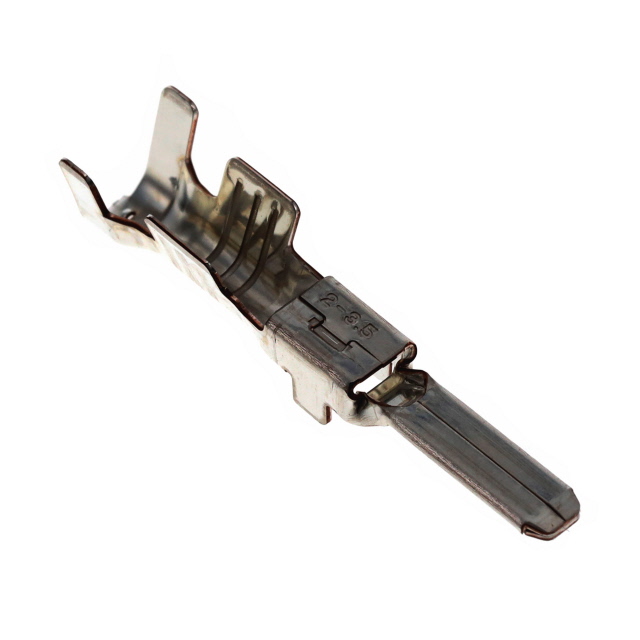

HVH-280-1214PCF

Active

Hirose Electric USA, Inc.

AUTOMOTIVE CONTACT, PIN, 14-12AWG, CRIMP ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

AUTOMOTIVE CONTACT, PIN, 14-12AWG, CRIMP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	For Use With/Related Products	Accessory Type	Pitch [x]	Pitch [x]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Mounting Type	Color	Note	Fastening Type	Contact Type	Number of Rows	Insulation Material	Features	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Type	Pin or Socket
Hirose Electric USA, Inc. HVH-280-2P/S-R	2	HVH-280 Series	Retainer
Hirose Electric USA, Inc. HVH-280-3S-HU				6.5 mm	0.256 in	Receptacle	125 °C	-40 °C	Crimp	Free Hanging (In-Line)	Black	Contacts Not Included	Latch Lock	Female Socket	1	Nylon Polyamide (PA)
Hirose Electric USA, Inc. HVH-280-2/2S-HO	4	HVH-280 Series															Waterproof
Hirose Electric USA, Inc. HVH-280-1214PCF									Crimp									39.4 Áin	1 Ám	14 AWG	12 AWG	Tin	Power	Blade
Hirose Electric USA, Inc. HVH-280-2/2S-WS	4	HVH-280 Series	Seal														Waterproof
Hirose Electric USA, Inc. HVH-280-4.2CF									Crimp									39.4 Áin	1 Ám			Tin	Stamped	Socket
Hirose Electric USA, Inc. HVH-280-2/2S-HU(A)	2			9.5 mm	0.374 in	Receptacle	120 °C	-40 °C	Crimp	Free Hanging (In-Line)		Contacts Not Included	Latch Holder	Female Socket	1	Polybutylene Terephthalate (PBT)	Waterproof
Hirose Electric USA, Inc. HVH-280-2/2S-HU	2			9.5 mm	0.374 in	Receptacle	120 °C	-40 °C	Crimp	Free Hanging (In-Line)			Latch Lock	Female Socket	1	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blade Contact Tin 12-14 AWG Crimp Power
