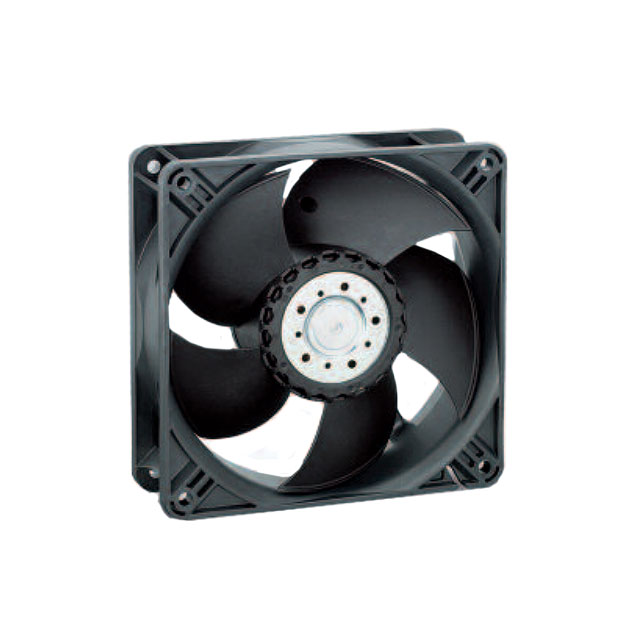

4414M

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 24V 18V TO 28V 108.3CFM 42DB 119 X 119 X 38MM MIDDLE SPEED

Deep-Dive with AI

Search across all available documentation for this part.

Documents4414M Operating Manual Compact Fans for AC, DC, and EC Catalog +1

4414M

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 24V 18V TO 28V 108.3CFM 42DB 119 X 119 X 38MM MIDDLE SPEED

Deep-Dive with AI

Documents4414M Operating Manual Compact Fans for AC, DC, and EC Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4414M

Air Flow	3.03 mł/min
Air Flow	108.3 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	65000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	42 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	4.1 W
RPM	3300 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	18 VDC
Weight	0.553 lb
Weight	250.84 g
Width [y]	38 mm

4400FN Series

DC Fans Tubeaxial Fan, 119x119x25mm, 24VDC, 117.7CFM, 8.5W, 52dBA, 4850RPM, Ball Bearing

Part	Lifetime @ Temp.	RPM	Voltage - Rated	Power (Watts)	Features	Fan Type	Termination	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Noise	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Weight	Weight	Bearing Type	Width [y]	Material - Blade	Operating Temperature [Max]	Air Flow	Approval Agency	Current Rating (Amps)	Static Pressure	Static Pressure
ebm-papst Inc. 4414F/2L	80000 Hrs	1600 RPM	24 VDC	1.2 W	Speed Sensor (Tach)	Tubeaxial	3 Wire Leads	55 CFM	1.54 mł/min	119 mm	119 mm	-20 C	-20 °C	75 ░C	75 °C	55 dB	18 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.386 lb	175.09 g	Ball	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 4414L3	75500 Hrs	1800 RPM	24 VDC			Tubeaxial	2 Wire Leads		59 CFM	119 mm	119 mm	-20 C	-20 °C	80 C		37 dB	12 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.604 lb	273.97 g	Ball	38 mm	Fiberglass Reinforced Nylon Polyamide (PA)	80 °C	1.65 m³/min
ebm-papst Inc. 4414/2MP		3300 RPM	24 VDC	4 W	Speed Sensor (Tach)	Tubeaxial		108 CFM	3.02 m³/min	119 mm	119 mm					26 dB	18 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.604 lb	273.97 g	Ball	38 mm	Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 4414FG	60000 Hrs	2900 RPM	24 VDC	5 W		Tubeaxial	2 Wire Leads	100.1 CFM	2.8 m³/min	119 mm	119 mm	-20 C	-20 °C	60 °C	60 °C	50 dB(A)	12 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.386 lb	175.09 g	Sintec	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			CE CSA UL VDE
ebm-papst Inc. 4414FNH	60000 Hrs	5400 RPM	24 VDC	12 W		Tubeaxial	2 Wire Leads		132.4 CFM	119 mm	119 mm	-20 C	-20 °C	70 °C	70 °C	55 dB	18 VDC	26.4 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.529 lb	239.95 g	Ball	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)		3.71 m³/min
ebm-papst Inc. 4414/2N-522	62500 Hrs	3650 RPM	24 VDC	5.4 W	Auto Restart Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	3 Wire Leads	120.7 CFM	3.38 mł/min	119 mm	119 mm	-30 ░C	-30 °C	75 ░C		46 dB(A)	18 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.631 lb	286.22 g	Ball	38 mm	Fiberglass Reinforced Nylon Polyamide (PA)	75 °C			0.226 A	117.6 Pa	0.472 in H2O
ebm-papst Inc. 4414FNN	60000 Hrs	4850 RPM	24 VDC	8.5 W		Tubeaxial	2 Wire Leads	117.7 CFM	3.3 m³/min	119 mm	119 mm	-20 C	-20 °C	70 °C	70 °C	52 dB	14 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.529 lb	239.95 g	Ball	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 4414FD			24 VDC	5 W		Tubeaxial	2 Wire Leads	100 CFM	2.8 m³/min	119 mm	119 mm					43 dB	12 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.38 lb	172.37 g	Ball	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			CE CSA UL VDE
ebm-papst Inc. 4414N	62500 Hrs	3650 RPM	24 VDC	5.4 W		Tubeaxial	2 Wire Leads	120.7 CFM	3.38 mł/min	119 mm	119 mm	-20 C	-20 °C	70 °C	70 °C	46 dB(A)	18 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Ball	38 mm	Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 4414M	65000 Hrs	3300 RPM	24 VDC	4.1 W		Tubeaxial	2 Wire Leads	108.3 CFM	3.03 mł/min	119 mm	119 mm	-20 C	-20 °C	75 ░C	75 °C	42 dB	18 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Ball	38 mm	Fiberglass Reinforced Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.48
		10	$ 40.55
		25	$ 38.73
		50	$ 37.42
		100	$ 36.14
		250	$ 34.52

Description

General part information

4400FN Series

DC Fans Tubeaxial Fan, 119x119x25mm, 24VDC, 117.7CFM, 8.5W, 52dBA, 4850RPM, Ball Bearing
