4414/2MP

Active

ebm-papst Inc.

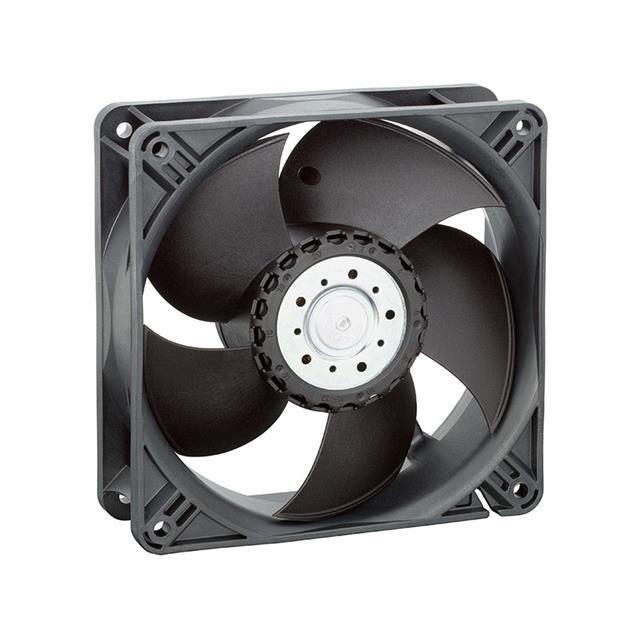

FAN AXIAL 119X38MM BALL 24VDC

Deep-Dive with AI

Search across all available documentation for this part.

Documents4414/2MP Operating Instructions Datasheet

4414/2MP

Active

ebm-papst Inc.

FAN AXIAL 119X38MM BALL 24VDC

Deep-Dive with AI

Documents4414/2MP Operating Instructions Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4414/2MP

Air Flow	3.02 m³/min
Air Flow	108 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	26 dB
Power (Watts)	4 W
RPM	3300 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	18 VDC
Weight	0.604 lb
Weight	273.97 g
Width [y]	38 mm

4400FN Series

DC Fans Tubeaxial Fan, 119x119x25mm, 24VDC, 117.7CFM, 8.5W, 52dBA, 4850RPM, Ball Bearing

Part	Lifetime @ Temp.	RPM	Voltage - Rated	Power (Watts)	Features	Fan Type	Termination	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Noise	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Weight	Weight	Bearing Type	Width [y]	Material - Blade	Operating Temperature [Max]	Air Flow	Approval Agency	Current Rating (Amps)	Static Pressure	Static Pressure
ebm-papst Inc. 4414F/2L	80000 Hrs	1600 RPM	24 VDC	1.2 W	Speed Sensor (Tach)	Tubeaxial	3 Wire Leads	55 CFM	1.54 mł/min	119 mm	119 mm	-20 C	-20 °C	75 ░C	75 °C	55 dB	18 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.386 lb	175.09 g	Ball	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 4414L3	75500 Hrs	1800 RPM	24 VDC			Tubeaxial	2 Wire Leads		59 CFM	119 mm	119 mm	-20 C	-20 °C	80 C		37 dB	12 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.604 lb	273.97 g	Ball	38 mm	Fiberglass Reinforced Nylon Polyamide (PA)	80 °C	1.65 m³/min
ebm-papst Inc. 4414/2MP		3300 RPM	24 VDC	4 W	Speed Sensor (Tach)	Tubeaxial		108 CFM	3.02 m³/min	119 mm	119 mm					26 dB	18 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.604 lb	273.97 g	Ball	38 mm	Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 4414FG	60000 Hrs	2900 RPM	24 VDC	5 W		Tubeaxial	2 Wire Leads	100.1 CFM	2.8 m³/min	119 mm	119 mm	-20 C	-20 °C	60 °C	60 °C	50 dB(A)	12 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.386 lb	175.09 g	Sintec	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			CE CSA UL VDE
ebm-papst Inc. 4414FNH	60000 Hrs	5400 RPM	24 VDC	12 W		Tubeaxial	2 Wire Leads		132.4 CFM	119 mm	119 mm	-20 C	-20 °C	70 °C	70 °C	55 dB	18 VDC	26.4 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.529 lb	239.95 g	Ball	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)		3.71 m³/min
ebm-papst Inc. 4414/2N-522	62500 Hrs	3650 RPM	24 VDC	5.4 W	Auto Restart Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	3 Wire Leads	120.7 CFM	3.38 mł/min	119 mm	119 mm	-30 ░C	-30 °C	75 ░C		46 dB(A)	18 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.631 lb	286.22 g	Ball	38 mm	Fiberglass Reinforced Nylon Polyamide (PA)	75 °C			0.226 A	117.6 Pa	0.472 in H2O
ebm-papst Inc. 4414FNN	60000 Hrs	4850 RPM	24 VDC	8.5 W		Tubeaxial	2 Wire Leads	117.7 CFM	3.3 m³/min	119 mm	119 mm	-20 C	-20 °C	70 °C	70 °C	52 dB	14 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.529 lb	239.95 g	Ball	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 4414FD			24 VDC	5 W		Tubeaxial	2 Wire Leads	100 CFM	2.8 m³/min	119 mm	119 mm					43 dB	12 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.38 lb	172.37 g	Ball	25.4 mm	Fiberglass Reinforced Nylon Polyamide (PA)			CE CSA UL VDE
ebm-papst Inc. 4414N	62500 Hrs	3650 RPM	24 VDC	5.4 W		Tubeaxial	2 Wire Leads	120.7 CFM	3.38 mł/min	119 mm	119 mm	-20 C	-20 °C	70 °C	70 °C	46 dB(A)	18 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Ball	38 mm	Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 4414M	65000 Hrs	3300 RPM	24 VDC	4.1 W		Tubeaxial	2 Wire Leads	108.3 CFM	3.03 mł/min	119 mm	119 mm	-20 C	-20 °C	75 ░C	75 °C	42 dB	18 VDC	28 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Ball	38 mm	Fiberglass Reinforced Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

4400FN Series

DC Fans Tubeaxial Fan, 119x119x25mm, 24VDC, 117.7CFM, 8.5W, 52dBA, 4850RPM, Ball Bearing

Documents

Technical documentation and resources

4414/2MP Operating Instructions

Datasheet
