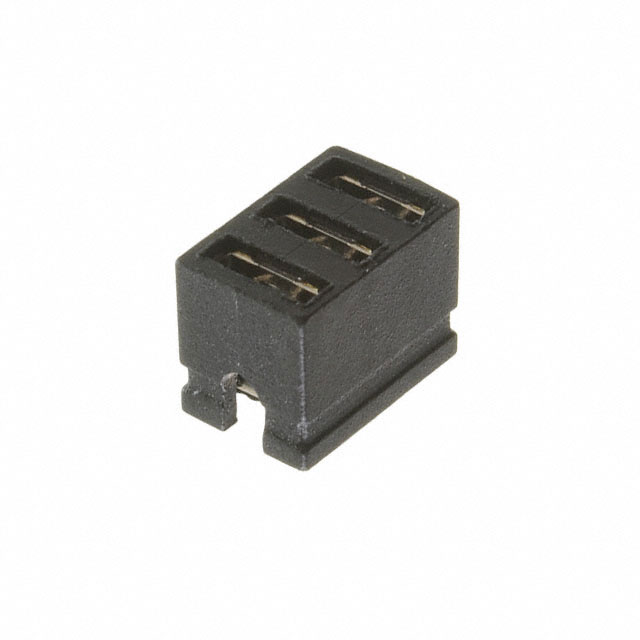

MSBG-03-G

Active

Adam Tech

CONN MINI SHUNT F 3 POS 2.54MM ST BAG

Search across all available documentation for this part.

Active

Adam Tech

CONN MINI SHUNT F 3 POS 2.54MM ST BAG

Technical Specifications

Parameters and characteristics for this part

Specification	MSBG-03-G

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	5.97 mm
Height [z]	0.235 in
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	2
Number of Positions or Pins (Grid) [custom]	6
Number of Positions or Pins (Grid) [custom]	3
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top
Voltage Rating	250 VAC

Part	Number of Positions or Pins (Grid)	Contact Finish	Type	Material Flammability Rating	Gender	Current Rating (Amps)	Color	Housing Material	Height [z]	Height [z]	Contact Finish Thickness	Voltage Rating	Pitch [x]	Pitch [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Adam Tech MSBG-05-G	5	Gold	Open Top	UL94 V-0	Female Sockets	3 A	Black	Polybutylene Terephthalate (PBT) Glass Filled	5.97 mm	0.235 in	Flash	250 VAC	2.54 mm	0.1 in
Adam Tech MSBG-03-G		Gold	Open Top	UL94 V-0	Female Sockets	3 A	Black	Polybutylene Terephthalate (PBT) Glass Filled	5.97 mm	0.235 in	Flash	250 VAC	2.54 mm	0.1 in	2	6	3
