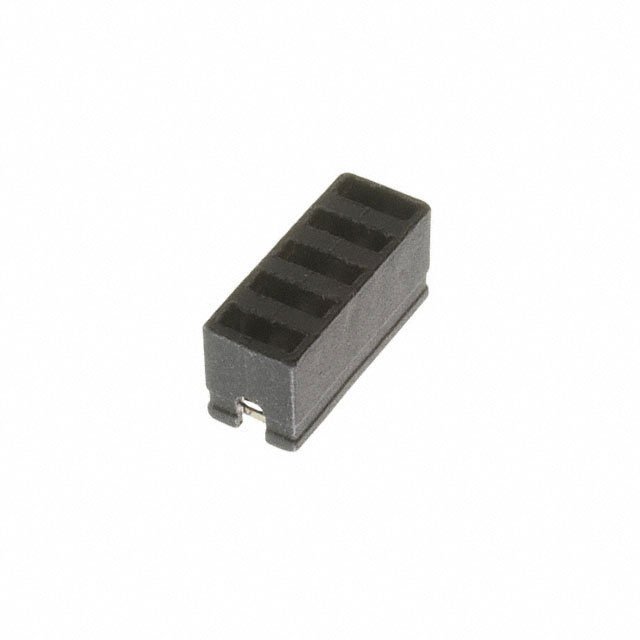

MSBG-05-G

Active

Adam Tech

GANG SHUNT 5P 2.54MM PITCH

Search across all available documentation for this part.

Active

Adam Tech

GANG SHUNT 5P 2.54MM PITCH

Technical Specifications

Parameters and characteristics for this part

Specification	MSBG-05-G

Color	Black
Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating (Amps)	3 A
Gender	Female Sockets
Height [z]	5.97 mm
Height [z]	0.235 in
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	5
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top
Voltage Rating	250 VAC

Part	Number of Positions or Pins (Grid)	Contact Finish	Type	Material Flammability Rating	Gender	Current Rating (Amps)	Color	Housing Material	Height [z]	Height [z]	Contact Finish Thickness	Voltage Rating	Pitch [x]	Pitch [x]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Adam Tech MSBG-05-G	5	Gold	Open Top	UL94 V-0	Female Sockets	3 A	Black	Polybutylene Terephthalate (PBT) Glass Filled	5.97 mm	0.235 in	Flash	250 VAC	2.54 mm	0.1 in
Adam Tech MSBG-03-G		Gold	Open Top	UL94 V-0	Female Sockets	3 A	Black	Polybutylene Terephthalate (PBT) Glass Filled	5.97 mm	0.235 in	Flash	250 VAC	2.54 mm	0.1 in	2	6	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (1 x 5) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold
