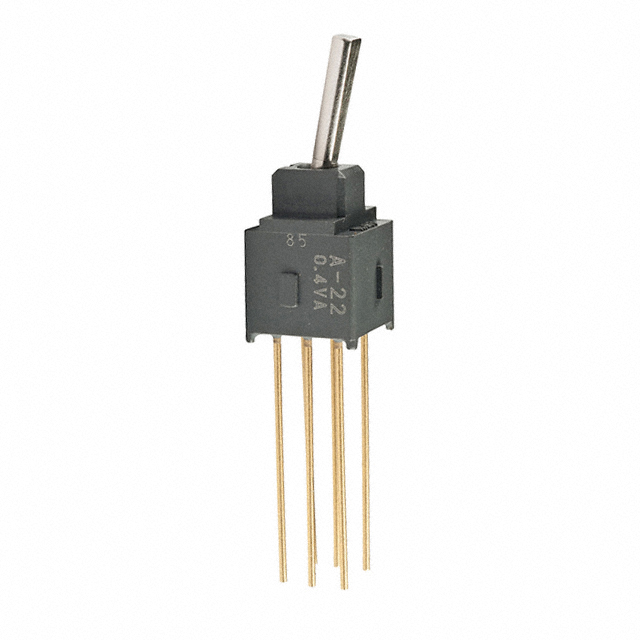

A22EW

Active

NKK Switches

PROCESS SEALED SUBMINIATURE TOGGLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A22EW

Actuator Length [x]	10 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Flatted
Bushing Thread	Unthreaded, Square
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Process Sealed
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	Wire Wrap
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

wt Series

...

Part	Mounting Type	Electrical Life	Circuit	Voltage Rating - AC	Illumination	Actuator Length [x]	Switch Function	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Material	Current Rating (Amps)	Actuator Type	Bushing Thread	Features
NKK Switches B15EV	Right Angle Through Hole Vertical	50000 Cycles	SPDT	28 V	Non-Illuminated	10 mm	On-Mom	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded	Epoxy Sealed Terminals
NKK Switches B19AB	Through Hole	50000 Cycles	SPDT	28 V	Non-Illuminated	10 mm	On-Off-Mom	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Standard Round	Unthreaded	Epoxy Sealed Terminals
NKK Switches B24KW	Through Hole	50000 Cycles	SP3T	28 V	Non-Illuminated	5 mm	On-On-On	28 V	-30 ░C	85 °C	Wire Wrap		0.4 VA	Lever for Cap	Unthreaded	Jumper needed to achieve triple throw
NKK Switches B15HW	Through Hole	50000 Cycles	SPDT	28 V	Non-Illuminated	6.3 mm	On-Mom	28 V	-30 ░C	85 °C	Wire Wrap	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded	Epoxy Sealed Terminals
NKK Switches A19KV	Right Angle Through Hole Vertical	50000 Cycles	SPDT	28 V	Non-Illuminated	5 mm	On-Off-Mom	28 V	-30 ░C	85 °C	PC Pin	Glass Filled Nylon Polyamide (PA)	0.4 VA	Lever for Cap	Unthreaded Square	Process Sealed
NKK Switches G12AP	Through Hole	100000 Cycles	SPDT	28 V	Non-Illuminated	3.8 mm	On-On	28 V	-25 °C	85 °C	PC Pin	Glass Filled Nylon Polyamide (PA)	0.4 VA	Standard Round	Unthreaded	Process Sealed
NKK Switches B22EP	Through Hole	50000 Cycles	DPDT	28 V	Non-Illuminated	10 mm	On-On	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded	Epoxy Sealed Terminals
NKK Switches B13JP	Through Hole	50000 Cycles	SPDT	28 V	Non-Illuminated	6.3 mm	On-Off-On	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Standard Round	Unthreaded	Epoxy Sealed Terminals
NKK Switches G12AV	Right Angle Through Hole Vertical	100000 Cycles	SPDT	28 V	Non-Illuminated	3.8 mm	On-On	28 V	-25 °C	85 °C	PC Pin	Glass Filled Nylon Polyamide (PA)	0.4 VA	Standard Round	Unthreaded	Process Sealed
NKK Switches A22EW	Through Hole	50000 Cycles	DPDT	28 V	Non-Illuminated	10 mm	On-On	28 V	-30 ░C	85 °C	Wire Wrap	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded Square	Process Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.23
Newark	Each	1	$ 13.89
		5	$ 12.95
		10	$ 11.91
		25	$ 10.87
		50	$ 9.83
		100	$ 8.69
		250	$ 7.80

Description

General part information

wt Series

Toggle Switch DPDT Through Hole
