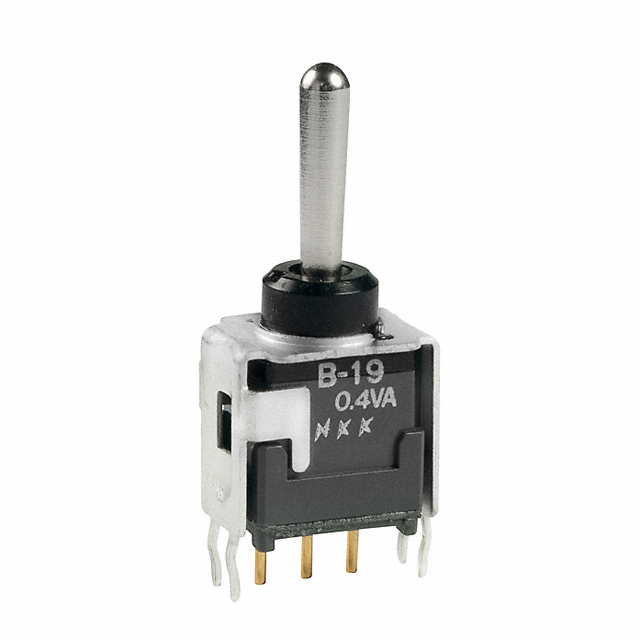

TOGGLE SWITCH, ON-OFF-(ON), SPDT, NON ILLUMINATED, B - ESD SERIES, 100 MA, PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

B19AB

Active

NKK Switches

TOGGLE SWITCH, ON-OFF-(ON), SPDT, NON ILLUMINATED, B - ESD SERIES, 100 MA, PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B19AB

Actuator Length [x]	10 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

wt Series

...

Part	Mounting Type	Electrical Life	Circuit	Voltage Rating - AC	Illumination	Actuator Length [x]	Switch Function	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Material	Current Rating (Amps)	Actuator Type	Bushing Thread	Features
NKK Switches B15EV	Right Angle Through Hole Vertical	50000 Cycles	SPDT	28 V	Non-Illuminated	10 mm	On-Mom	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded	Epoxy Sealed Terminals
NKK Switches B19AB	Through Hole	50000 Cycles	SPDT	28 V	Non-Illuminated	10 mm	On-Off-Mom	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Standard Round	Unthreaded	Epoxy Sealed Terminals
NKK Switches B24KW	Through Hole	50000 Cycles	SP3T	28 V	Non-Illuminated	5 mm	On-On-On	28 V	-30 ░C	85 °C	Wire Wrap		0.4 VA	Lever for Cap	Unthreaded	Jumper needed to achieve triple throw
NKK Switches B15HW	Through Hole	50000 Cycles	SPDT	28 V	Non-Illuminated	6.3 mm	On-Mom	28 V	-30 ░C	85 °C	Wire Wrap	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded	Epoxy Sealed Terminals
NKK Switches A19KV	Right Angle Through Hole Vertical	50000 Cycles	SPDT	28 V	Non-Illuminated	5 mm	On-Off-Mom	28 V	-30 ░C	85 °C	PC Pin	Glass Filled Nylon Polyamide (PA)	0.4 VA	Lever for Cap	Unthreaded Square	Process Sealed
NKK Switches G12AP	Through Hole	100000 Cycles	SPDT	28 V	Non-Illuminated	3.8 mm	On-On	28 V	-25 °C	85 °C	PC Pin	Glass Filled Nylon Polyamide (PA)	0.4 VA	Standard Round	Unthreaded	Process Sealed
NKK Switches B22EP	Through Hole	50000 Cycles	DPDT	28 V	Non-Illuminated	10 mm	On-On	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded	Epoxy Sealed Terminals
NKK Switches B13JP	Through Hole	50000 Cycles	SPDT	28 V	Non-Illuminated	6.3 mm	On-Off-On	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Standard Round	Unthreaded	Epoxy Sealed Terminals
NKK Switches G12AV	Right Angle Through Hole Vertical	100000 Cycles	SPDT	28 V	Non-Illuminated	3.8 mm	On-On	28 V	-25 °C	85 °C	PC Pin	Glass Filled Nylon Polyamide (PA)	0.4 VA	Standard Round	Unthreaded	Process Sealed
NKK Switches A22EW	Through Hole	50000 Cycles	DPDT	28 V	Non-Illuminated	10 mm	On-On	28 V	-30 ░C	85 °C	Wire Wrap	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded Square	Process Sealed
