09400030301

Active

HARTING Technology Group

HAN 3HPR BASE PANEL TOGGLE LOCKING ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 3HPR BASE PANEL TOGGLE LOCKING ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Thread Size	Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Style	Housing Color	Connector Type	Housing Finish	Housing Material	Lock Location
HARTING Technology Group 09400030402	PG13.5	3 A	54.6 mm	45.4 mm	2.15 in	1.276 in	32.4 mm	1.787 in	125 °C	-40 °C	Top Entry	Black	Hood	Chromate	Zinc Die Cast	Screw Locks on Hood
HARTING Technology Group 09400030301		3 A							125 °C	-40 °C	Bottom Entry	Black	Base - Panel Mount	Chromate	Zinc Die Cast	Screw Locks on Hood

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

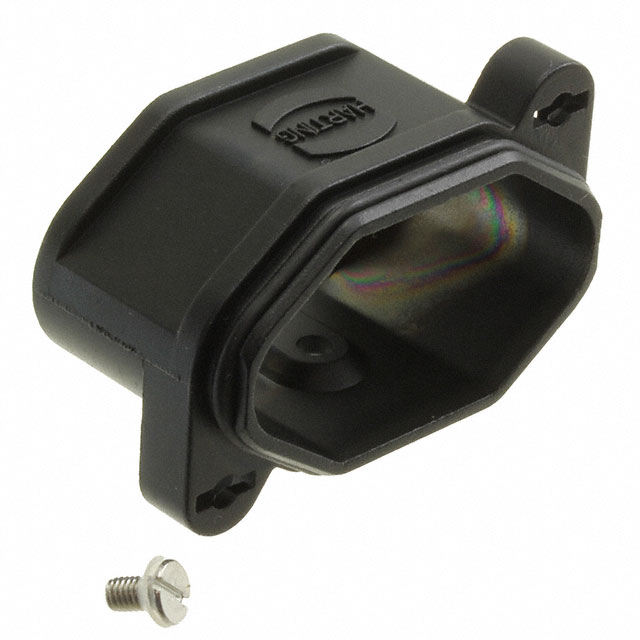

Base - Panel Mount Connector Bottom Entry 3A IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
