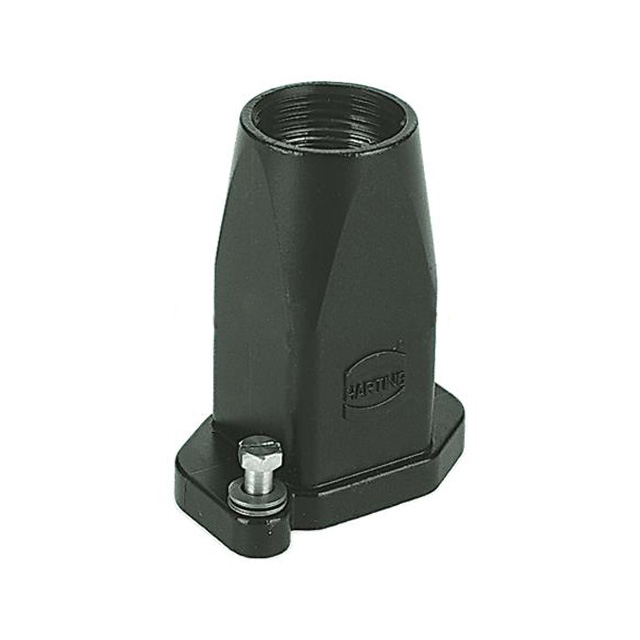

09400030402
ActiveHARTING Technology Group
HAN 3HPR HOOD TOP ENTRY PG 13.5 TOGGLE L ROHS COMPLIANT: NA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09400030402 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Finish | Chromate |
| Housing Material | Zinc, Die Cast |
| Lock Location | Screw Locks on Hood |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 3 A |
| Size / Dimension [x] | 45.4 mm |
| Size / Dimension [x] | 1.787 in |
| Size / Dimension [y] | 1.276 in |
| Size / Dimension [y] | 32.4 mm |
| Size / Dimension [z] | 54.6 mm |
| Size / Dimension [z] | 2.15 in |
| Style | Top Entry |
| Thread Size | PG13.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09400030 Series
Hood Connector Top Entry PG13.5 3A IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
