Technical Specifications
Parameters and characteristics for this part
| Specification | ZXMS6004DT8QTA |
|---|---|
| Current - Output (Max) [Max] | 1.2 A |
| Fault Protection | Over Temperature, Current Limiting (Fixed), Over Voltage |
| Features | Auto Restart |
| Grade | Automotive |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Low Side |
| Output Type | N-Channel |

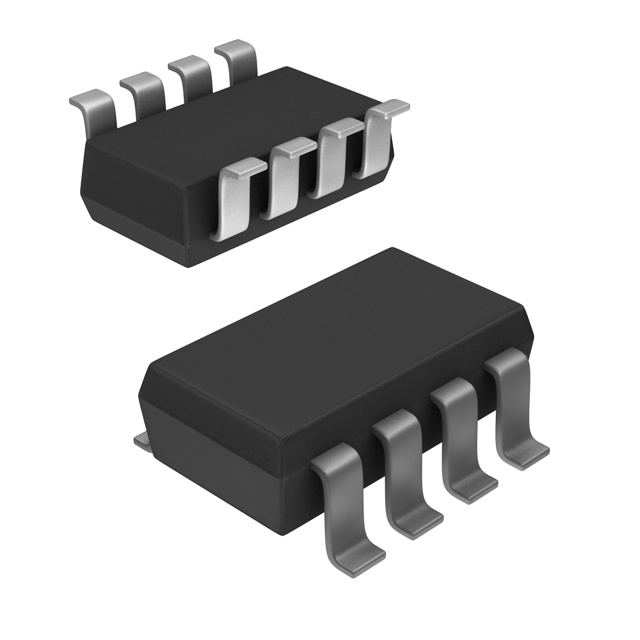

| Package / Case | SOT-223-8 |
| Qualification | AEC-Q101 |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 350 mOhm |
| Supplier Device Package | SM8 |
| Switch Type | General Purpose |
| Voltage - Load | 60 V |
| Voltage - Supply (Vcc/Vdd) | 5 V, 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.53 | |
| 2000 | $ 0.48 | |||
| 3000 | $ 0.46 | |||
| 5000 | $ 0.44 | |||
| 7000 | $ 0.44 | |||
Description
General part information
ZXMS6004DT8Q Series
Diodes Incorporated announces the introduction of the ZXMS6004N8Q and ZXMS6004DN8Q, each housed in the automotive standard molded plastic SO-8 case. These are parts within the N-channel IntelliFET series. The ZXMS6004N8Q is a single-channel self-protected low-side IntelliFET with logic level input. The ZXMS6004DN8Q is the dual-channel version of ZXMS6004N8. Both parts are qualified to AEC-Q101 with short-circuit reliability characterization and are provide PPAP capability.
