ZXMS6004DT8TA

Active

Diodes Inc

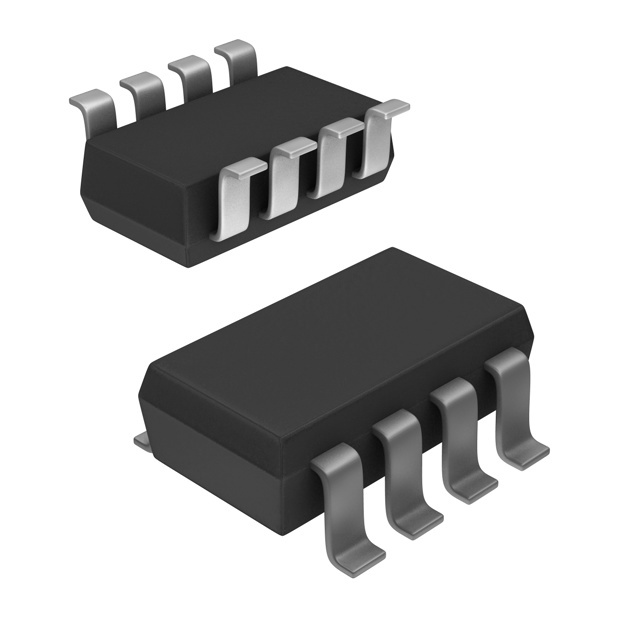

SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 0.0009A I(D), 60V, 2-ELEMENT, N-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET, SM8, 8 PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques

ZXMS6004DT8TA

Active

Diodes Inc

SMALL SIGNAL FIELD-EFFECT TRANSISTOR, 0.0009A I(D), 60V, 2-ELEMENT, N-CHANNEL, SILICON, METAL-OXIDE SEMICONDUCTOR FET, SM8, 8 PIN

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZXMS6004DT8TA

Current - Output (Max) [Max]	1.2 A
Fault Protection	Over Temperature, Current Limiting (Fixed), Over Voltage
Features	Auto Restart
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Low Side
Output Type	N-Channel
Package / Case	SOT-223-8
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	350 mOhm
Supplier Device Package	SM8
Switch Type	General Purpose
Voltage - Load	60 V
Voltage - Supply (Vcc/Vdd)	5 V, 3.3 V

ZXMS6004DT8Q Series

60V N-CHANNEL SELF PROTECTED ENHANCEMENT MODE INTELLIFET® MOSFET

Part	Qualification	Features	Voltage - Load [Max]	Voltage - Load [Min]	Mounting Type	Current - Output (Max) [Max]	Rds On (Typ)	Output Configuration	Output Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Interface	Switch Type	Input Type	Supplier Device Package	Ratio - Input:Output [custom]	Fault Protection	Grade	Package / Case [y]	Package / Case [x]	Voltage - Supply (Vcc/Vdd)	Voltage - Load
Diodes Inc ZXMS6004DGQTA	AEC-Q101	Auto Restart	5.5 V	0 V	Surface Mount	1.3 A	350 mOhm	Low Side	N-Channel	1	-40 °C	125 °C	TO-261-4 TO-261AA	On/Off	General Purpose	Non-Inverting	SOT-223	1:1	Current Limiting (Fixed) Over Temperature Over Voltage Short Circuit	Automotive
Diodes Inc ZXMS6004N8Q-13	AEC-Q101	Auto Restart			Surface Mount	1.3 A	350 mOhm	Low Side	N-Channel	1	-40 °C	125 °C	8-SOIC	On/Off	General Purpose	Non-Inverting	8-SOIC	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	Automotive	3.9 mm	0.154 in	3.3 V 5 V	60 V
Diodes Inc ZXMS6004N8-13		Auto Restart			Surface Mount	1.3 A	350 mOhm	Low Side	N-Channel	1	-40 °C	125 °C	8-SOIC	On/Off	General Purpose	Non-Inverting	8-SO	1:1	Current Limiting (Fixed) Over Temperature Over Voltage		3.9 mm	0.154 in	3.3 V 5 V	60 V
Diodes Inc ZXMS6004DGTA		Auto Restart			Surface Mount	1.3 A	350 mOhm	Low Side	N-Channel	1	-40 °C	150 °C	TO-261-4 TO-261AA	On/Off	General Purpose	Non-Inverting	SOT-223-3	1:1	Current Limiting (Fixed) Over Temperature Over Voltage				3.3 V 5 V	60 V
Diodes Inc ZXMS6004FFTA	AEC-Q101	Auto Restart			Surface Mount	1.3 A	350 mOhm	Low Side	N-Channel	1	-40 °C	150 °C	SOT-23-3 Flat Leads	On/Off	General Purpose	Non-Inverting	SOT-23F	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	Automotive			3.3 V 5 V	60 V
Diodes Inc ZXMS6004DN8-13		Auto Restart			Surface Mount	1.3 A	350 mOhm	Low Side	N-Channel	2	-40 °C	125 °C	8-SOIC	On/Off	General Purpose	Non-Inverting	8-SO	1:1	Current Limiting (Fixed) Over Temperature Over Voltage		3.9 mm	0.154 in	3.3 V 5 V	60 V
Diodes Inc ZXMS6004DT8TA		Auto Restart			Surface Mount	1.2 A	350 mOhm	Low Side	N-Channel	2	-40 °C	150 °C	SOT-223-8	On/Off	General Purpose	Non-Inverting	SM8	1:1	Current Limiting (Fixed) Over Temperature Over Voltage				3.3 V 5 V	60 V
Diodes Inc ZXMS6004DT8QTA	AEC-Q101	Auto Restart			Surface Mount	1.2 A	350 mOhm	Low Side	N-Channel	2	-40 °C	125 °C	SOT-223-8	On/Off	General Purpose	Non-Inverting	SM8	1:1	Current Limiting (Fixed) Over Temperature Over Voltage	Automotive			3.3 V 5 V	60 V
