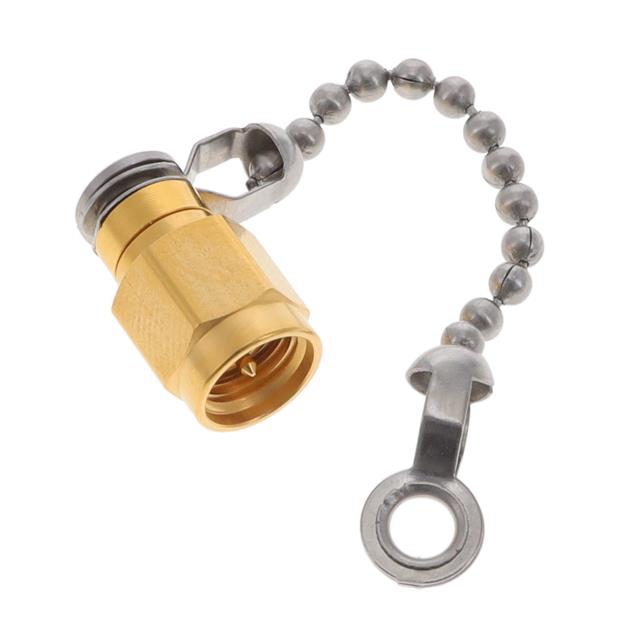

M39030/3-03N

Active

Amphenol SV Microwave

CONN TERMINATOR PLUG SMA 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M39030/3-03N

Active

Amphenol SV Microwave

CONN TERMINATOR PLUG SMA 50 OHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M39030/3-03N

Body Finish	Gold
Body Material	Stainless Steel
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Chain
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

M39030/3 Series

Part	Contact Finish	Frequency - Max [Max]	Features	Impedance	Body Finish	Body Material	Connector Type	Contact Material	Dielectric Material	Mounting Type	Connector Style
Amphenol SV Microwave M39030/3-03S	Gold	18 GHz	Chain	50 Ohms	Gold	Stainless Steel	Male Pin Plug	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	SMA
Amphenol SV Microwave M39030/3-11S	Gold	18 GHz		50 Ohms	Gold	Stainless Steel	Male Pin Plug	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	SMA
Amphenol SV Microwave M39030/3-01S	Gold	18 GHz		50 Ohms	Gold	Stainless Steel	Male Pin Plug	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	SMA
Amphenol SV Microwave M39030/3-11N	Gold	18 GHz		50 Ohms	Gold	Stainless Steel	Male Pin Plug	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	SMA
Amphenol SV Microwave M39030/3-01N	Gold	18 GHz		50 Ohms	Gold	Stainless Steel	Male Pin Plug	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	SMA
Amphenol SV Microwave M39030/3-06S	Gold	18 GHz		50 Ohms	Gold	Stainless Steel	Female Socket Jack	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	SMA
Amphenol SV Microwave M39030/3-06N	Gold	18 GHz		50 Ohms	Gold	Stainless Steel	Female Socket Jack	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	SMA
Amphenol SV Microwave M39030/3-12S	Gold	18 GHz		50 Ohms	Gold	Stainless Steel	Male Pin Plug	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	SMA
Amphenol SV Microwave M39030/3-03N	Gold	18 GHz	Chain	50 Ohms	Gold	Stainless Steel	Male Pin Plug	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	SMA
Amphenol SV Microwave M39030/3-04N	Gold	18 GHz	Chain	50 Ohms	Gold	Stainless Steel	Male Pin Plug	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Cap Free Hanging	SMA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 162.29
		10	$ 161.07
		25	$ 144.98

Description

General part information

M39030/3 Series

Terminator Coax Connector Plug, Male Pin SMA 50 Ohms
