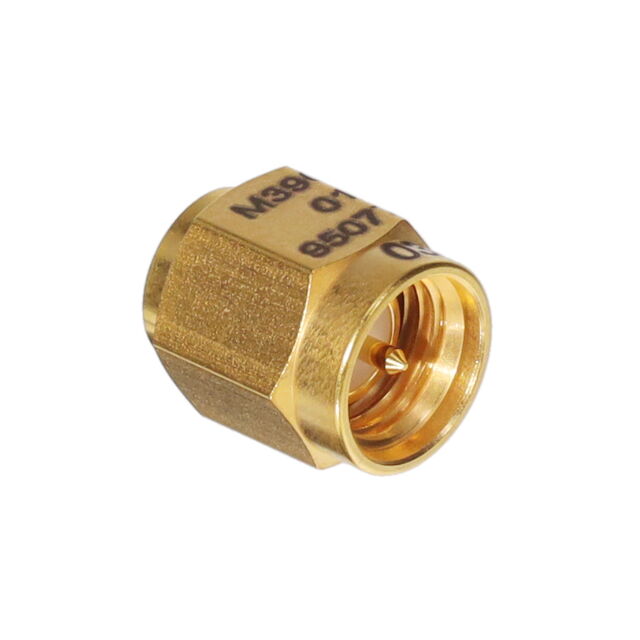

M39030/3-01N
ActiveAmphenol SV Microwave
CONN TERMINATOR PLUG SMA 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M39030/3-01N
ActiveAmphenol SV Microwave
CONN TERMINATOR PLUG SMA 50 OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M39030/3-01N |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging, Cap |
M39030/3 Series
| Part | Contact Finish | Frequency - Max [Max] | Features | Impedance | Body Finish | Body Material | Connector Type | Contact Material | Dielectric Material | Mounting Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol SV Microwave | Gold | 18 GHz | Chain | 50 Ohms | Gold | Stainless Steel | Male Pin Plug | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | SMA |
Amphenol SV Microwave | Gold | 18 GHz | 50 Ohms | Gold | Stainless Steel | Male Pin Plug | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | SMA | |
Amphenol SV Microwave | Gold | 18 GHz | 50 Ohms | Gold | Stainless Steel | Male Pin Plug | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | SMA | |
Amphenol SV Microwave | Gold | 18 GHz | 50 Ohms | Gold | Stainless Steel | Male Pin Plug | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | SMA | |
Amphenol SV Microwave | Gold | 18 GHz | 50 Ohms | Gold | Stainless Steel | Male Pin Plug | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | SMA | |
Amphenol SV Microwave | Gold | 18 GHz | 50 Ohms | Gold | Stainless Steel | Female Socket Jack | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | SMA | |
Amphenol SV Microwave | Gold | 18 GHz | 50 Ohms | Gold | Stainless Steel | Female Socket Jack | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | SMA | |
Amphenol SV Microwave | Gold | 18 GHz | 50 Ohms | Gold | Stainless Steel | Male Pin Plug | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | SMA | |
Amphenol SV Microwave | Gold | 18 GHz | Chain | 50 Ohms | Gold | Stainless Steel | Male Pin Plug | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | SMA |
Amphenol SV Microwave | Gold | 18 GHz | Chain | 50 Ohms | Gold | Stainless Steel | Male Pin Plug | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Cap Free Hanging | SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 156.01 | |
| 25 | $ 137.65 | |||
Description
General part information
M39030/3 Series
Terminator Coax Connector Plug, Male Pin SMA 50 Ohms
