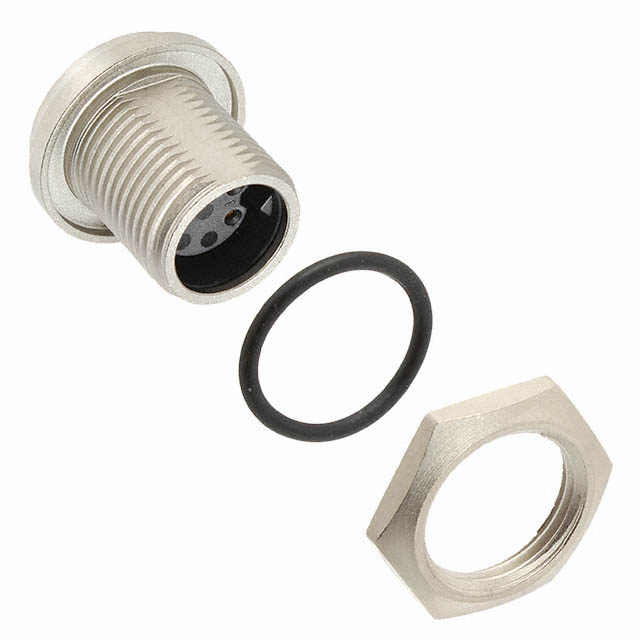

SF7282-3SG-3ES

Active

Conxall/Switchcraft

CONN RCPT FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Color	Shielding	Contact Finish - Mating	Shell Finish	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type	Insert Material	Shell Material	Mounting Feature	Primary Material	Ingress Protection	Number of Positions
Conxall/Switchcraft SF7282-3PG-3ES	Silver	Shielded	Gold	Nickel	Keyed	-40 °C	120 °C	Copper Alloy	Male Pins Receptacle	Polyester Resin	Copper Alloy	Bulkhead - Front Side Nut	Metal	IP66/IP68
Conxall/Switchcraft SF7282-4PG-3ES	Silver	Shielded	Gold	Nickel	Keyed	-40 °C	120 °C	Copper Alloy	Male Pins Receptacle	Polyester Resin	Copper Alloy	Bulkhead - Front Side Nut	Metal	IP66/IP68	4
Conxall/Switchcraft SF7282-6PG-3ES	Silver	Shielded	Gold	Nickel	Keyed	-40 °C	120 °C	Copper Alloy	Male Pins Receptacle	Polyester Resin	Copper Alloy	Bulkhead - Front Side Nut	Metal	IP66/IP68	6
Conxall/Switchcraft SF7282-7SG-3ES	Silver	Shielded	Gold	Nickel	Keyed	-40 °C	120 °C	Copper Alloy	Receptacle Female Sockets	Polyester Resin	Copper Alloy	Bulkhead - Front Side Nut	Metal	IP66/IP68	7
Conxall/Switchcraft SF7282-3SG-3ES	Silver	Shielded	Gold	Nickel	Keyed	-40 °C	120 °C	Copper Alloy	Receptacle Female Sockets	Polyester Resin	Copper Alloy	Bulkhead - Front Side Nut	Metal	IP66/IP68
Conxall/Switchcraft SF7282-5PG-3ES	Silver	Shielded	Gold	Nickel	Keyed	-40 °C	120 °C	Copper Alloy	Male Pins Receptacle	Polyester Resin	Copper Alloy	Bulkhead - Front Side Nut	Metal	IP66/IP68
Conxall/Switchcraft SF7282-8SG-3ES	Silver	Shielded	Gold	Nickel	Keyed	-40 °C	120 °C	Copper Alloy	Receptacle Female Sockets	Polyester Resin	Copper Alloy	Bulkhead - Front Side Nut	Metal	IP66/IP68	8
