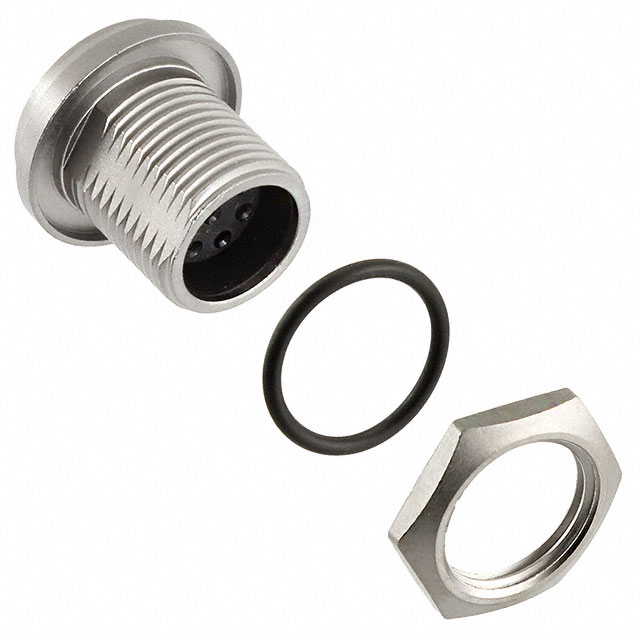

SF7282-8SG-3ES
ActiveConxall/Switchcraft
CONN RCPT FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
SF7282-8SG-3ES
ActiveConxall/Switchcraft
CONN RCPT FMALE 8P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SF7282-8SG-3ES |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Ingress Protection | IP66/IP68 |
| Insert Material | Polyester Resin |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 8 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 52.99 | |
| 10 | $ 41.05 | |||
| 25 | $ 37.26 | |||
| 50 | $ 34.71 | |||
| 100 | $ 32.39 | |||
| 250 | $ 29.67 | |||
Description
General part information
SF7282 Series
8 Position Circular Connector Receptacle, Female Sockets Solder Cup
